product Specification
| Input Voltage(V) | AC165~245V | Light Source | LED |
| Lamp Luminous Efficiency(lm/w) | 80 | Lifespan (Hours) | 50000 |
| Color Rendering Index(Ra) | 80 | Lamp Luminous Flux(lm) | 1440 |
| IP Rating | IP40 | Color Temperature(CCT) |
6000K (Daylight Alert) |
| Warranty(Year) | 3-Year | Material | Aluminum |
| Working Temperature(℃) |
-40 - 60 |
Lighting solutions service | Lighting And Circuitry Design, Project Installation |
Core Product Features
1. Ultra-Uniform, Low-Glare Light:
Designed to Provide Visual Comfort The whole panel surface is 100% evenly lighted thanks to the sophisticated edge-lit design:
High-Performance Mitsubishi PMMA Lens: Light is directed uniformly by the precisely constructed light guide plate (LGP), which removes dark areas and guarantees uniform brightness from edge to edge.
Low UGR Rating: This light's UGR<22 (or optional UGR<19) minimises glare, satisfying workplace safety regulations and reducing employee eye strain.
Mechanical Strength Certified: The diffuser is shatterproof and long-lasting even in high-traffic situations since it passes the 0.2N·m impact test.
2. Long-lasting Industrial-Grade Construction Each component complies with ISO 2409 requirements and is designed for long-term reliability:

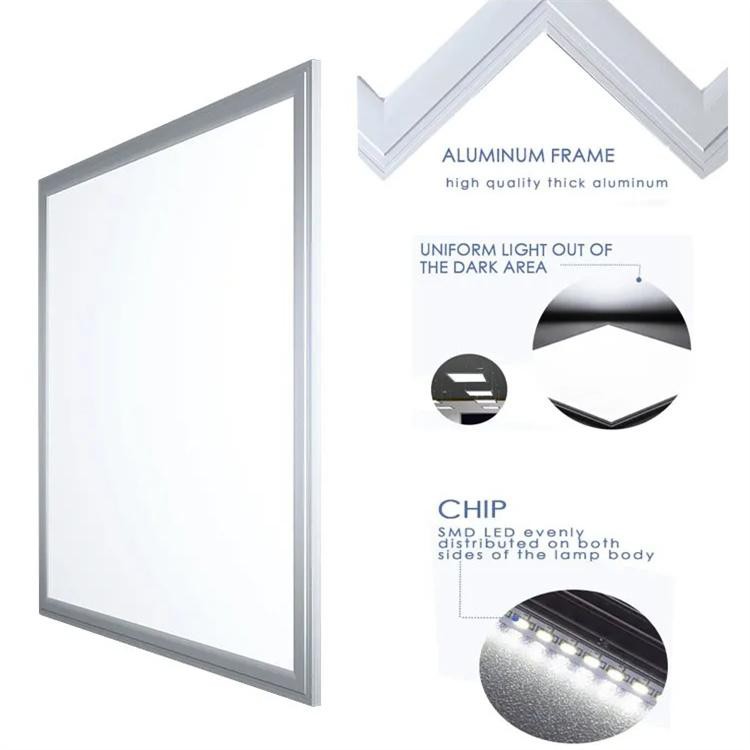

Thickened 6063 Aluminium Frame: The premium aluminium housing is made to last years of operation and is resistant to corrosion and scratches. A clean, simple appearance is produced by the seamless welded construction.
Reinforced Iron Backplate: To avoid corrosion and deformation, a long-lasting surface coating is applied to the 0.3mm iron plate. Additionally, the structured ribbed shape prolongs the life of the LED by acting as a passive heat sink.
IP44 Rated (Optional): The sealed construction keeps moisture and dust out, making it appropriate for humid spaces like kitchens, baths, and medical facilities.
Core Product Features
3. Cutting-Edge LED and Driver Technology Powered by high-end parts for dependable, durable performance:

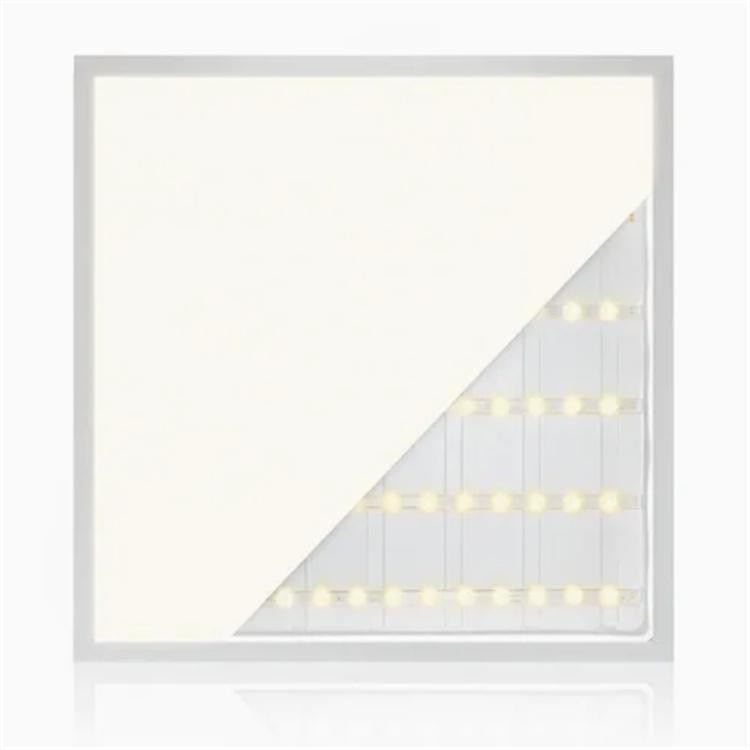

Evenly Distributed SMD LEDs: LEDs with high luminous effectiveness are positioned along the panel's two borders to provide brilliant, consistent light. No colour changes over time, no uneven brightness.
Superior Isolated Driver: The external driver's surge protection, short-circuit protection, and constant current management provide steady, flicker-free performance and remove the possibility of an early failure.
Long Lifespan: With little light deterioration over time, the light guide plate and its parts are designed to last for more than 20 years.
4. Adaptable Installation & Adaptable Uses Easy to put up and flexible enough to fit in any space: Standard Grid Sizes:
Easy to replace outdated fluorescent panels, available in 600x600mm, 300x1200mm, and other popular drop ceiling sizes. Multiple Mounting Options: It may be hung with optional hanging kits, surface-mounted on walls or ceilings, or recessed into drop ceilings.
Customisable Options: To meet the needs of your project, choose from a variety of colour temperatures (3000K–6500K), dimmable drivers, and IP ratings.
Where This Light Shines Brightest
Office Buildings: Where low-glare, uniform light improves productivity and reduces eye strain.
Healthcare Facilities: Hospitals, clinics, and labs, where IP44-rated models meet hygiene and safety standards.
Educational Institutions: Schools and universities, where flicker-free light supports student focus.
Retail & Hospitality: Stores, hotels, and restaurants, where a sleek design and consistent light enhance the customer experience.
