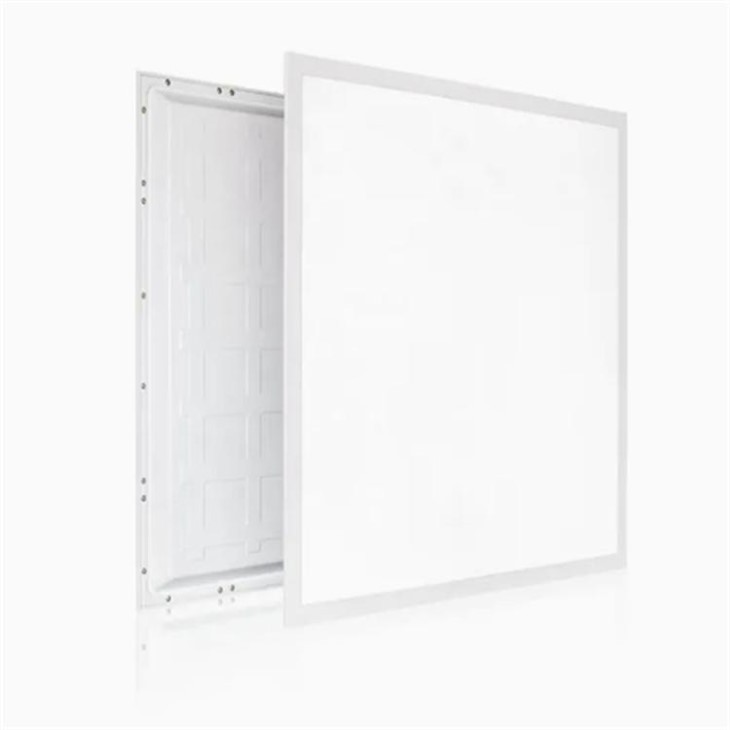

Energy-saving And Efficient LED Panel Light

Core Product Features

1. Exceptionally Sturdy and Slim Design

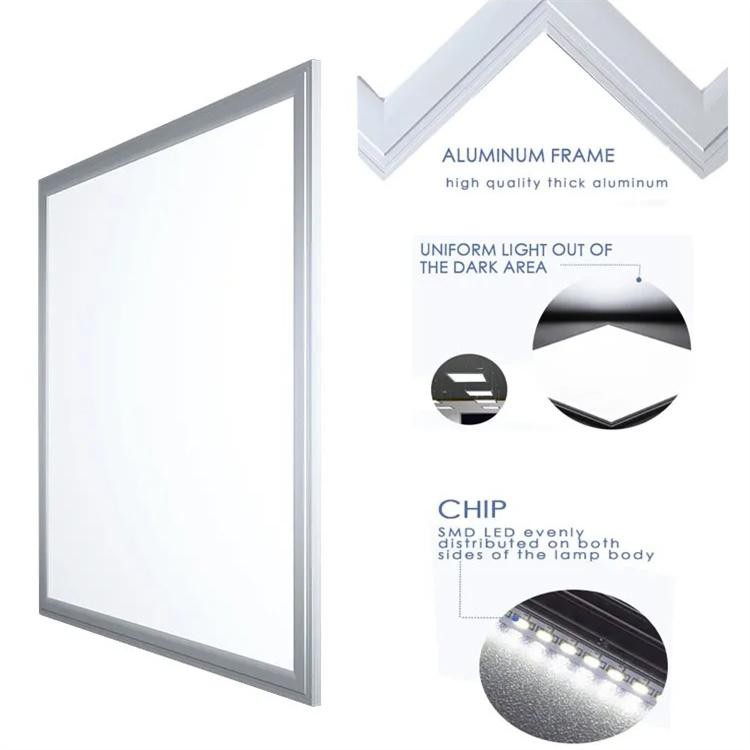

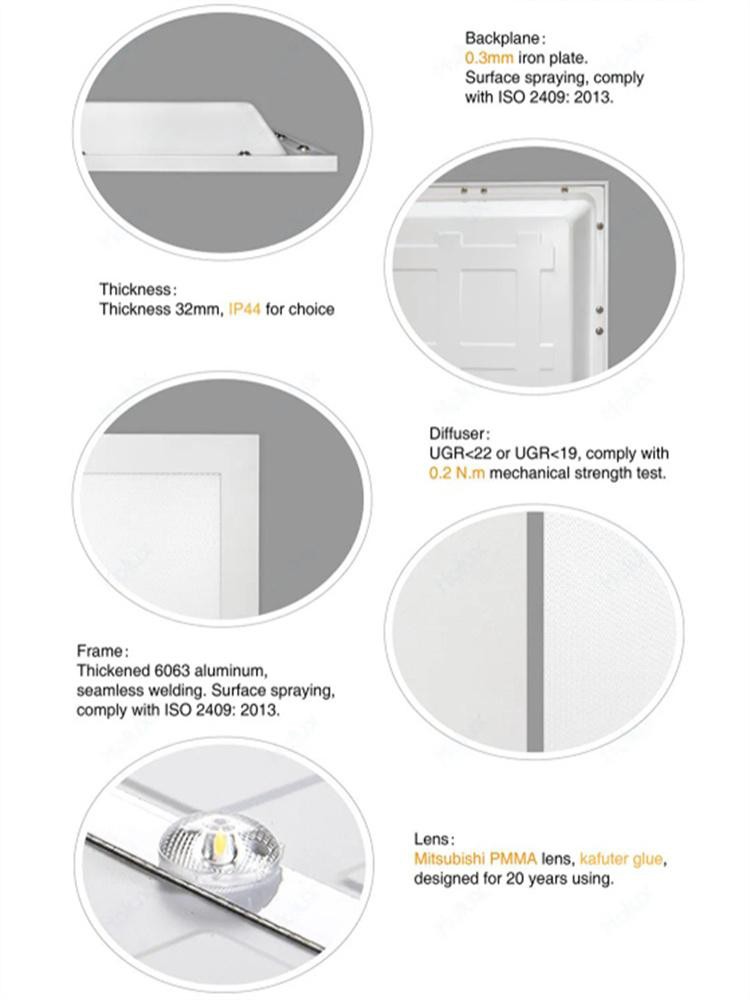

This panel light, which is just 32 mm thick, has a sleek, low-profile design that blends in well with any surface-mounted or drop ceiling system. Its frame, which satisfies ISO 2409:2013 requirements for corrosion resistance and long-term structural integrity, is constructed from thicker 6063 aluminium with seamless welding and a long-lasting powder-coated finish. The fixture remains cool even after prolonged operation because to the sturdy support and efficient heat dissipation provided by the 0.3mm iron backplane.

2. Consistent, Glare-Free Lighting
With UGR <22 (or UGR <19, optional) for outstanding visual comfort, this panel's precisely developed Mitsubishi PMMA lenses and premium light guides provide consistent, shadow-free illumination. It is perfect for businesses, schools, and healthcare settings since it reduces intense glare and has smooth, constant light with no flickering or dark areas. The diffuser's durability against common impacts is ensured by its passing the 0.2N·m mechanical strength test.

Core Product Features

3. Durable, High-Effectiveness Performance

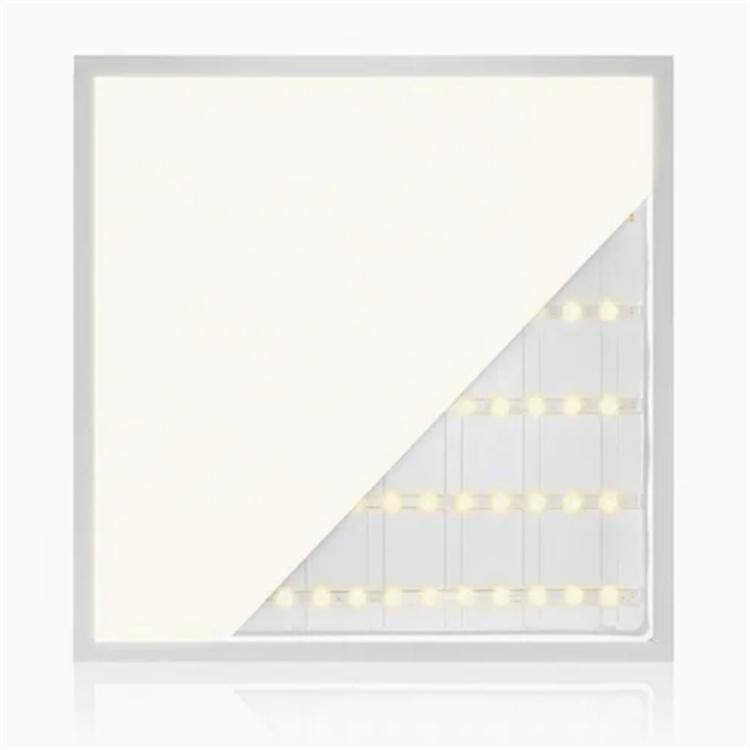

The panel light, which is powered by uniformly spaced SMD LEDs, provides brilliant, energy-efficient lighting with a lifetime designed for more than 20 years of dependable usage (based on average operating circumstances). Over time, the high-quality driver lowers maintenance costs and its effect on the environment by ensuring steady performance, low power consumption, and little heat production.

4. Adaptable, Dependable Construction Options
For improved protection against moisture and dust, choose between standard and IP44-rated devices. These are ideal for commercial settings that are prone to humidity, such as kitchens and bathrooms. From the robust aluminium frame and impact-resistant diffuser to the corrosion-resistant fasteners, every part of this panel light is made to endure without sacrificing functionality.

🛠️ Installation & Usage Guide

Step 1: Pre-Installation Prep

For recessed drop ceilings: Ensure your grid system is compatible with the 600×600mm panel size and rated for the fixture's weight.

For surface mounting: Select a flat, stable ceiling surface, and confirm the power circuit is compatible with the panel's voltage requirements.

Always turn off the power at the circuit breaker before beginning any electrical work.

Step 2: Recessed Grid Installation (Most Common)

Lift the panel light into the ceiling grid, aligning its edges with the T-bar rails.

Gently lower the panel into place, ensuring it sits securely and flush with the ceiling surface.

Route the driver and wiring through the ceiling cavity, keeping the driver in a well-ventilated area.

Step 3: Electrical Connection

Connect the panel's driver to the mains power supply following local electrical codes: match live, neutral, and ground wires as indicated.

Secure all connections with wire nuts or terminal blocks, and tuck the wiring neatly into the ceiling cavity to avoid damage.

Plug the driver into the panel light's connector, ensuring a tight, secure fit.

Step 4: Surface Mount Installation (If Needed)

Use a compatible surface mount frame kit (sold separately) to attach the panel light to the ceiling.

Mark and drill pilot holes for the mounting bracket, then secure the bracket to the ceiling.

Attach the panel light to the bracket, then complete the electrical connection as outlined above.

Step 5: Final Check & Usage

Restore power at the circuit breaker and test the panel light to ensure it turns on smoothly with no flickering or dimming.

Adjust the panel's position if needed to ensure it sits flush and evenly in the ceiling.

For ongoing maintenance, simply wipe the diffuser with a soft, dry cloth to remove dust-no disassembly required.
