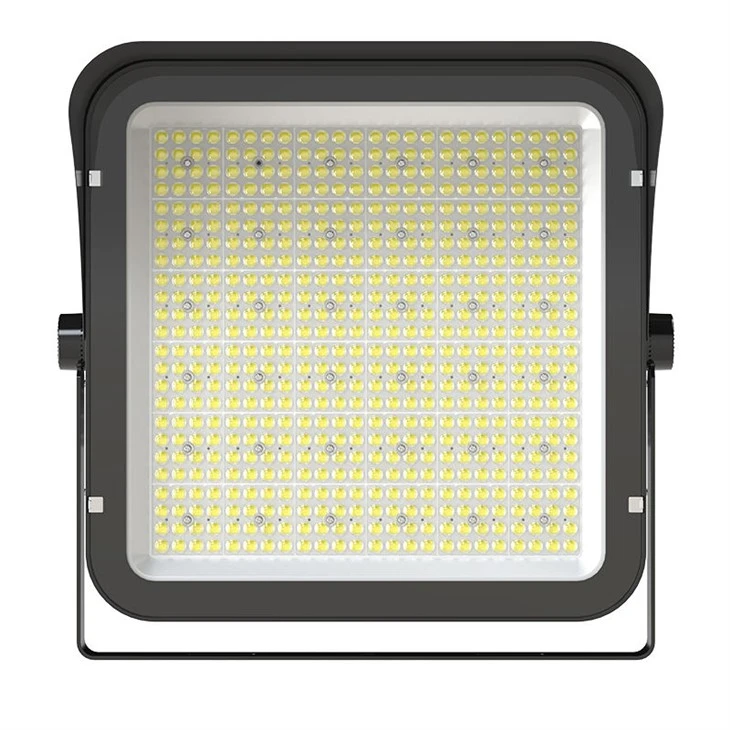

Aluminum Lamp Body IP67 LED Stadium Sports Light

Aluminum Lamp Body IP67 LED Stadium Sports Light
Details:
1. Available in three different power models (small, medium, and large), equipped with high-density LED beads, offering excellent luminous efficacy; a single lamp can cover a wide area.
2. The entire unit features a thickened die-cast aluminum unibody shell with densely perforated ventilation channels on the back, allowing air convection to quickly dissipate heat from the LED beads.
3. The lamp surface is equipped with a waterproof silicone sealing ring and a dustproof back cover, achieving an IP67 protection rating, fully resistant to harsh outdoor environments such as heavy rain, dust, direct sunlight, and frost.
Send Inquiry
Description
Send Inquiry


Contact now



Products Description

High Brightness LED Stadium Lighting

1. The top is equipped with an arc-shaped light-shielding plate, effectively restricting light leakage and preventing glare from direct sunlight. Athletes and passersby will not be blinded by the light, while reducing light pollution and meeting outdoor lighting standards.

2. It comes with a thickened U-shaped fixing bracket, which can be rotated at multiple angles to adjust the illumination direction. It supports installation on poles, walls, and steel trusses; it can be directly fixed to basketball courts, football fields, warehouse steel beams, and park columns, making installation and debugging simple and flexible.

3. Applications cover various large-area outdoor venues: football fields, basketball courts, tennis courts, indoor sports venues; large warehousing and logistics warehouses, cargo sorting areas, factory parks, racetracks, open-air parking lots, and large exhibition outdoor venues. It is a mainstream lighting fixture for engineering lighting and sports venue projects.

4. The front uses a high-transmittance, thickened PC lens with high light transmittance. It is also impact-resistant and UV-resistant, and will not yellow or crack under long-term outdoor sun exposure. Light refraction is uniform, and there are no light spots or breaks even when illuminating at a distance, resulting in more even overall illumination of the venue.









Product Parameters
Products Name Aluminum Lamp Body IP67 LED Stadium Sports Light Input Voltage(V) AC100-277V
Color Temperature(CCT) 2700-6500K Lamp Luminous Efficiency(lm/w) 120-150
Application Sports Stadiums Control Method Switch
Lifespan (Hours) 30000 Warranty(Year) 3-Year
IP Rating Ip67 Color Rendering Index(Ra) 80
Support Dimmer no Installation wall Mount
Material Alumimum Lighting solutions service

Lighting And Circuitry Design

Light Source LED, Epistar Product Weight(kg) 4.6
Light Distribution Shape type v, Type IV, Adjustable, 45°, Wide Flood Feature Anti-Glare, High Brightness, Eco-Friendly, Durable, Easy Installation,flicker free
Certification CE, Emc, LVD, RoHS Working Temperature(℃) -15 = 45
Design Style Modern Power Factor >0.90
Power 200w/300w/400w/600w LED Type Smd 2835
Color black

Lamp Luminous Flux(lm)

24000-90000
Beam Angle(°) 60,90,120 Special Feature High Bright

More Detial

This high-power LED stadium floodlight boasts core advantages such as multiple power options, powerful split heat dissipation, IP67 all-weather waterproofing, and anti-glare shielding design. It balances brightness, durability, and installation flexibility, making it suitable for various large-area outdoor venues such as stadiums, large warehouses, and industrial parks. The robust aluminum body and stable light source reduce later maintenance costs, making it a cost-effective professional outdoor lighting solution for engineering projects and large outdoor venues.
