comparison of product parameters
| Input Voltage(V) | AC90-305V | IP Rating | IP65 |
| Application | Sports Stadiums | Certification | CE, RoHS |
|
Material |
Aluminum alloy | Light Source | LED |
| Beam Angle(°) | 60/90/60*80 | Place of Origin | Guangdong, China |
| CRI (Ra>) | 80 | Working Lifetime(Hour) | 50000 |
| Lamp Luminous Flux(lm) | 84000 | Lamp Luminous Efficiency(lm/w) | 140-150lm/w |
| Working Temperature(℃) | -20 - 45 | heatsink material | high-intensitive die casting aluminium alloy |
| optical lens | PC | Driver | MeanWell Driver |
| rotation angle | 0-180 | warranty | 5 years |
| Color | frosted black/white | LED Light Source | SMD3030 |

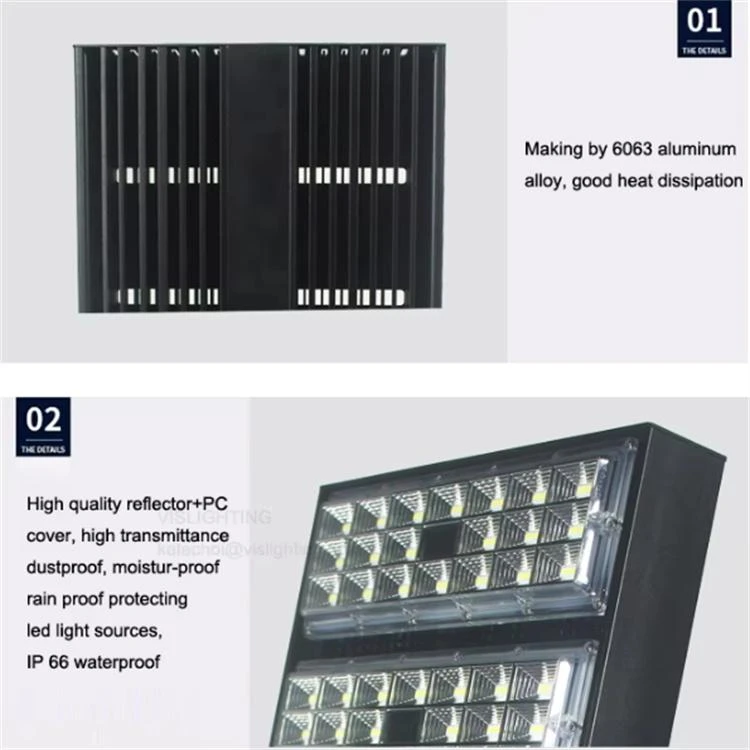

Premium Heat Dissipation Structure & Housing Performance
The whole lamp housing is forged from high-strength 6063 aviation aluminum alloy, with integrated vertical rib heat sink design, greatly expanding heat exchange area to rapidly export heat generated by LED chips.
Excellent thermal conductivity effectively reduces internal operating temperature of light source and power supply, avoiding overheating aging failure and ensuring stable long-term operation under high-temperature outdoor environment.
Black matte anti-corrosion electrostatic spraying surface treatment, anti-rust, anti-oxidation, resistant to acid rain, salt fog and harsh coastal weather, no paint peeling or deformation after long-term outdoor exposure.
Detachable modular split structure, each light module is independent heat dissipation unit; single damaged module can be replaced separately without replacing the whole lamp, greatly lowering post-maintenance cost.

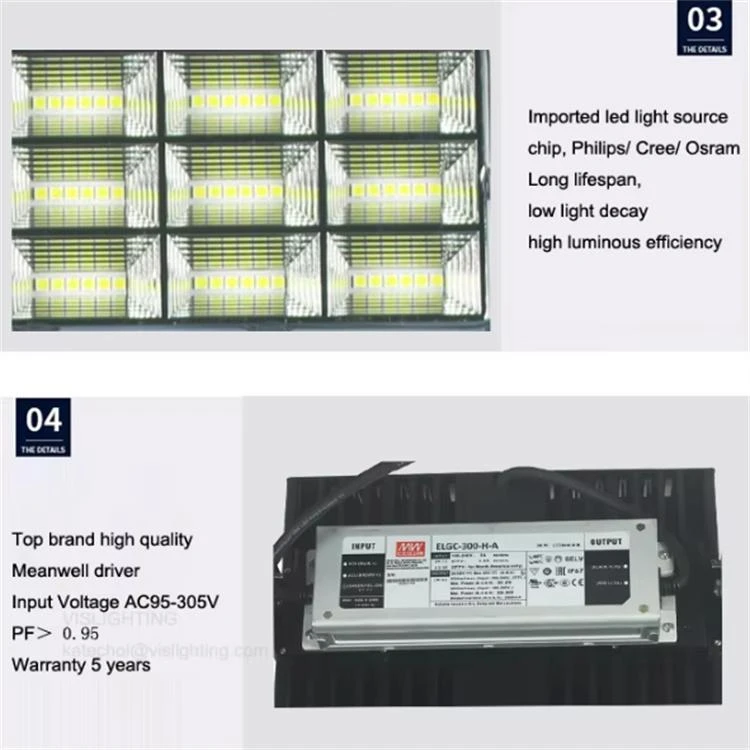

Superior Optical Performance & Light Transmission
Equipped with high-precision integrated aluminum reflector + high-transmittance PC optical lens cover, precisely controls light output angle, effectively eliminates light waste and glare, improves ground uniform illumination effect.
Imported high-transmittance PC cover material, light transmittance up to 93%, anti-yellowing, anti-ultraviolet aging, not easy to crack under long-term sun exposure.
Integrated dustproof & moisture-proof sealing structure for optical cavity, fully isolate dust, mist and rainwater, keep lens surface clean permanently to maintain stable luminous efficiency.
Multiple optional beam angles (15°/30°/60°/90°/120°) available, customizable lighting solution for long-distance projection or wide-area coverage scenarios.
