comparison of product parameters
|
Application |
Sports Stadiums |
Light Source |
LED |
|
Input Voltage(V) |
AC 85-265V |
IP Rating |
IP66 |
|
Lamp Luminous Efficiency(lm/w) |
150 |
Lifespan (Hours) |
40000 |
|
Color Temperature(CCT) |
5000K (Daylight) |
Color Rendering Index(Ra) |
80 |
|
Lamp Body Material |
Aluminum alloy |
Warranty(Year) |
5-Year |
|
Support Dimmer |
Yes |
Lighting solutions service |
Lighting And Circuitry Design |
|
Working Temperature(℃) |
-25-60 |
Place of Origin |
Guangdong, China |
|
Beam Angle(°) |
60 |
Lamp Luminous Flux(lm) |
75000 |
|
Product Weight(kg) |
37.5 |
LED High Mast fLOOD |
400W 500W 600W 800W 1000W 1200W |
|
Input Voltage |
100-277V |
CCT |
3000K 4000K 5700K |
|
Material |
Aluminum+Glass Cover |
Installation |
10-20M height |
Revolutionary Split Thermoelectric Separation Heat Dissipation & Long Service Life
Unique thermoelectric separation architecture: external independent waterproof power supply box made of iron shell, completely isolated from lamp body heat source, no heat conduction between driver and LED boards.
Large-area integrated die-cast aluminum lamp body with dense fin heat sink structure, rapid air convection heat dissipation, effectively lowers LED junction temperature by 15-22℃ compared with conventional integrated flood lights.
Low working temperature of LED chips greatly slows down light decay speed, 50000 hours ultra-long rated service life under normal operation.
Professional constant current waterproof driver with over-voltage, over-current, short-circuit and over-temperature multi-protection circuits, avoids sudden lamp burnout caused by voltage fluctuation.
No rapid light loss in early service stage: only less than 10% lumen depreciation after 30,000 hours of continuous use, far superior to ordinary integrated stadium lights with fast light decay.
Modular independent driver design, power supply can be replaced separately without disassembling the whole lamp body, drastically cutting post-maintenance labor and material costs.
Aluminum alloy shell with anti-corrosion oxidation treatment, resistant to salt fog, acid rain and high temperature aging, no deformation or rust after years of outdoor use.
Top-Grade Waterproof & Dustproof Protection Grade
Full lamp certified IP66 waterproof and dustproof rating, fully sealed internal structure, completely prevents dust, sand, rainwater and snow from penetrating into the light source and power cavity.
Silicone rubber full-circle sealing strip between lens and lamp frame, high temperature resistant, anti-aging, no water leakage risk under heavy rain or water spray flushing.
External driver box also reaches IP66 waterproof standard, independent sealed cavity prevents moisture condensation inside the power supply, avoids short circuit failure in humid coastal or rainy areas.
High impact resistance IK08 grade, shockproof and anti-collision, withstands accidental hitting, strong wind vibration and outdoor construction collision damage.
Wide operating temperature range: stable performance from -40℃ to +60℃, adapts to extreme cold northern areas, high-temperature tropical equatorial regions and coastal salt fog environments.
All wiring ports adopt waterproof compression cable glands, reinforced seal to stop water seepage from wire inlet, suitable for long-term open-air installation without extra rain shelter.
Flexible Installation & Adjustable Structural Design

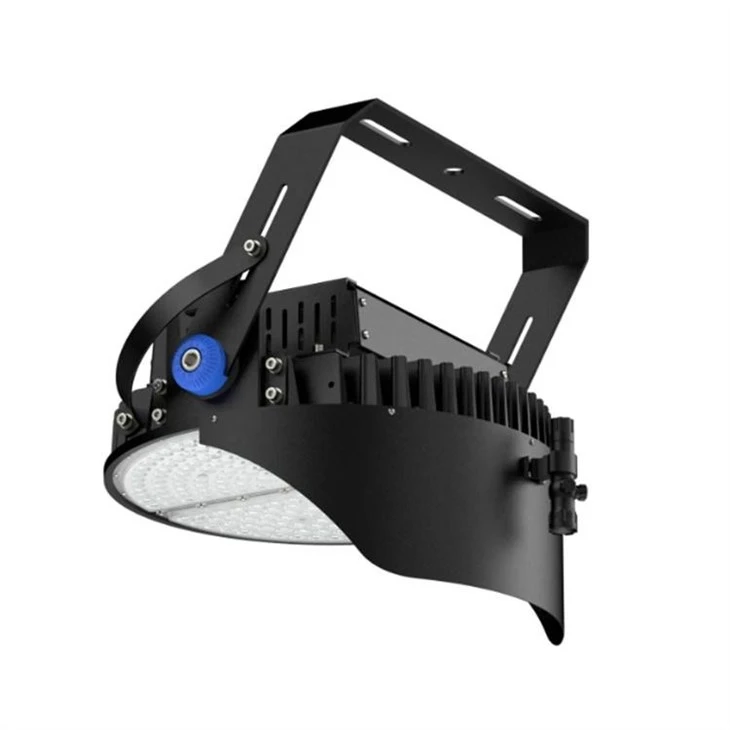

Heavy-duty thickened U-shaped mounting bracket, high load-bearing capacity, compatible with pole top, wall mounted, tower crane and high mast installation ways.
0-180° infinite angle adjustment with large blue locking handwheel, fast angle positioning without extra tools, accurate light aiming to target venue area.

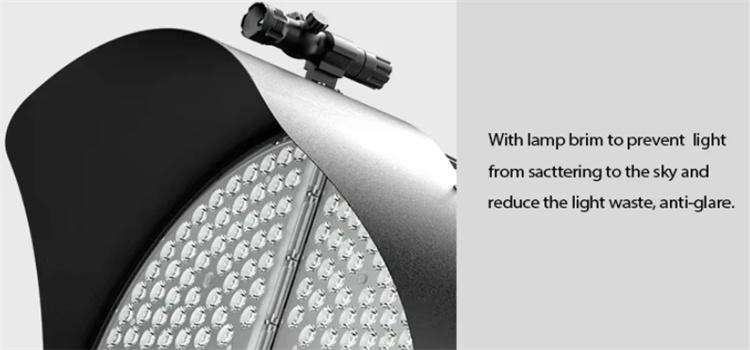

Standard mounting laser sight equipped on lamp top, helps construction workers quickly calibrate light projection direction during high-altitude installation, improves construction efficiency greatly.
Multi-slotted mounting holes on bracket, flexible matching with different specification lamp poles and fixed brackets, no extra processing needed for installation.
Rotatable anti-twist wire protection buckle, prevents cable breakage caused by long-term wind swing and angle adjustment.
Compact circular integrated appearance, wind resistance optimized curved lamp housing, reduces wind load pressure for high mast installation, enhances overall safety in typhoon-prone regions.
