comparison of product parameters
|
Application |
football field/stadium/tennis court/playground |
Light Source |
LED |
|
Input Voltage(V) |
100-480V |
IP Rating |
Ip67 |
|
Lamp Luminous Efficiency(lm/w) |
150 |
Lifespan (Hours) |
50000 |
|
Color Temperature(CCT) |
5000k |
Color Rendering Index(Ra) |
80 |
|
Lamp Body Material |
aluminum+glass |
Warranty(Year) |
5-Year |
|
Support Dimmer |
No |
Lighting solutions service |
Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation |
|
Working Temperature(℃) |
-40-45 |
Place of Origin |
Guangdong, China |
|
Beam Angle(°) |
15/30/60/90 |
Lamp Luminous Flux(lm) |
84000 |
|
Product name |
Outdoor Stadium Light |
MATERIAL |
glass + Aluminium Alloy |
|
beam angle |
120 degree |
Usage |
high mast or pole mount |
|
Lens |
15/30/60 degree lens |
Type |
High mast/pole mount |
|
IP Grade |
IP67 |
Power |
600/800w |

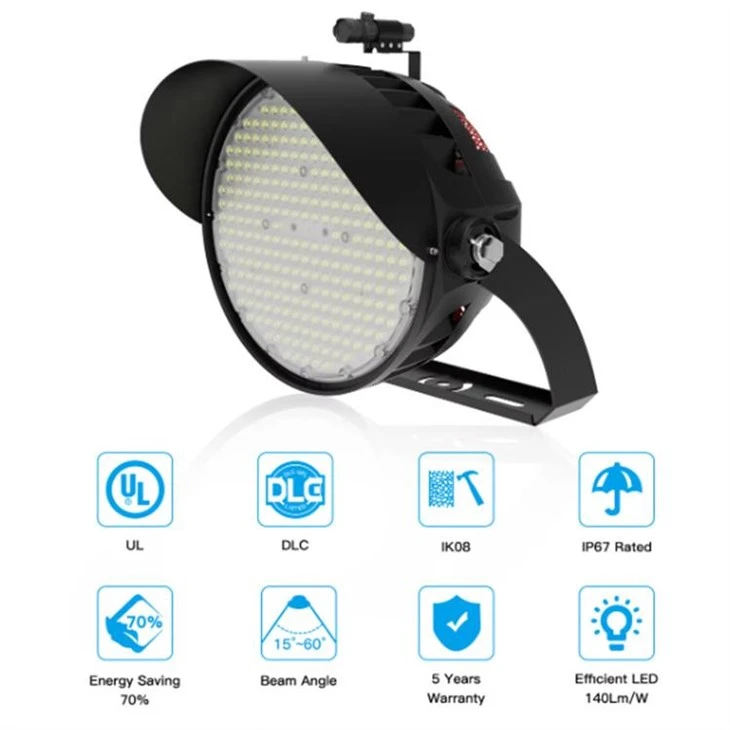

Core Lighting Performance
High-efficiency LED chips with luminous efficiency up to 140 Lm/W, maximized light output while cutting power consumption by over 70% compared with conventional metal halide stadium lights
Flexible beam angle options from 15° to 60°, meet diversified lighting demands from concentrated long-distance projection to wide-area uniform illumination
Equipped with professional laser pointer for precise light positioning during installation, greatly lowering adjustment difficulty for high pole mounting projects
Removable anti-glare shield effectively eliminates stray light and light pollution, offering comfortable vision experience for athletes and audiences
High-transmittance PC lens, uniform light distribution, no local over-bright spot, excellent glare suppression performance

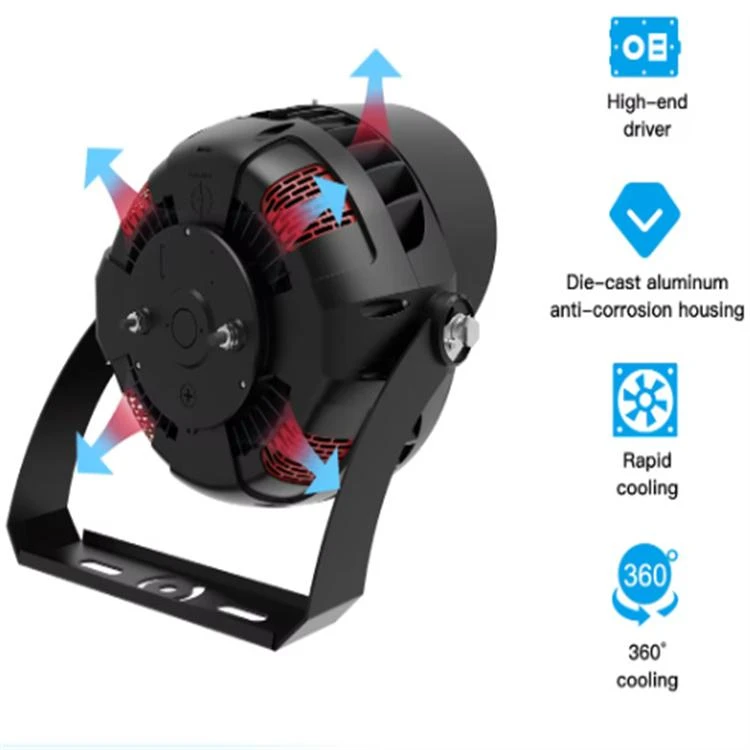

Heat Dissipation, Service Life & Light Attenuation
Full die-cast aluminum anti-corrosion housing with breathable metal mesh heat dissipation structure, realizing 360° omnidirectional air convection cooling
Optimized fin heat sink design rapidly export internal operating heat, keep LED chips working under reasonable temperature
Adopts premium constant-current LED driver with over-voltage, over-current and short-circuit protection, stabilize operating current and reduce chip aging speed
Controlled low light decay: less than 30% lumen depreciation after 50,000 hours continuous operation
Rated average service life reaches 50,000 working hours, drastically reduce lamp replacement frequency and later maintenance cost
Effectively avoid premature light failure caused by heat accumulation, suitable for long-hour continuous night lighting of sports venues
Installation & Structure Advantages
Widened & thickened adjustable U-shaped mounting bracket, solid and reliable support for high-pole installation
Angle calibration scale design enables accurate and fast light angle adjustment
Support self-installation without complex professional operation, save engineering labor cost
360° adjustable irradiation angle, flexible to match different pole height and venue layout solutions
