Product Specification:
| Wattage | 200W/300W/500W/600W/800W ±5% |
| Input | 100-240V AC, MeanWell |
| Dimming Type | Knob button |
| Dimension | 310*310*200mm |
| 490*490*201mm | |
| IP Grade | IP20 |
| Beam angle | 120°/60°/30° |
| Working temperature | -10-50℃ |
| Certificate | CE LVD EMC RoHS |
| Warranty | 3 Years |
| Package | 51*51*25cm/1pcs; 5KG |
| 69*51*25cm/1pcs; 21KG | |
| Material & Housing Data | |
| Housing Color | Black |
| Housing Material | Aluminum |
| Cover material | glass |

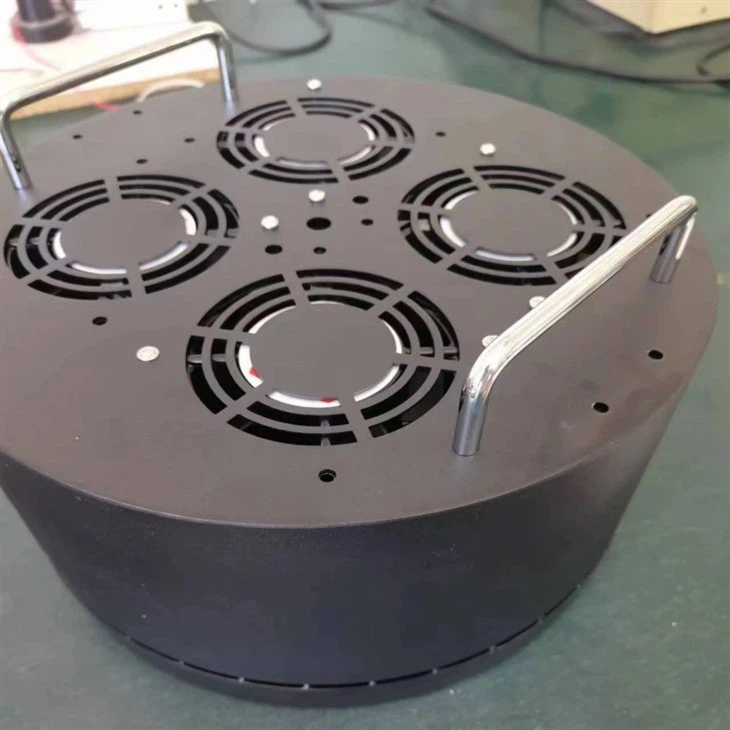

| heat dissipation | 4 fans |
| Wire plug | EU/AU/US 1.5meter plug wire |
| Photometric Data | |
| Led cihp brand | LG/Epistar/Epileds |
| chip type | SMD3535 with copper substrate |
| SMD2835 aluminum substrate | |
| Ee(mW/cm²) | 200W 365nm 230mW/cm² |
| 600W 365nm 420mW/cm² | |
| 800W 365nm 590mW/cm² | |
| Wave length | 395nm/365nm/375nm |
| Life time | 10000Hrs |
product key technologies
1. Energy Efficiency: UV LED bulbs use substantially less electricity than traditional UV lamps. This energy-saving function helps to lower operating expenses while maintaining high levels of photocatalytic activity.
2. Long lifetime: LED technology has a lifetime of more than 20,000 hours, which reduces maintenance and replacement expenses.
3. Eco-Friendly: By removing mercury and other harmful compounds, these lamps are safer for the environment and meet increasingly strict regulatory requirements.
4. Compact and Versatile Design: Its small size and durable construction make it easier to integrate into a variety of equipment and situations, including air purifiers and water treatment units.
5. Stable UV Wavelength: Stable emission at specified wavelengths optimises photocatalyst activation, resulting in consistent and efficient photocatalytic processes.
Usage
1. Disinfection and sterilisation.
Bacteria, viruses, fungus, and biofilms are inactivated. TiO₂ photocatalysis is typically used to increase the effect.
Applications include medical equipment, food processing surfaces, water disinfection, and hospital ventilation systems.
2. Chemical Synthesis and Green Chemistry.
Examples of selective oxidation/reduction processes include converting alcohol to aldehyde, reducing CO₂, and producing H₂.
Photoreactors for pharmaceutical intermediates and fine chemicals.
