Product Specification:
| Wattage | 200W/300W/500W/600W/800W ±5% |
| Input | 100-240V AC, MeanWell |
| Dimming Type | Knob button |
| Dimension | 310*310*200mm |
| 490*490*201mm | |
| IP Grade | IP20 |
| Beam angle | 120°/60°/30° |
| Working temperature | -10-50℃ |
| Material & Housing Data | |
| Housing Color | Black |
| Housing Material | Aluminum |
| Cover material | glass |

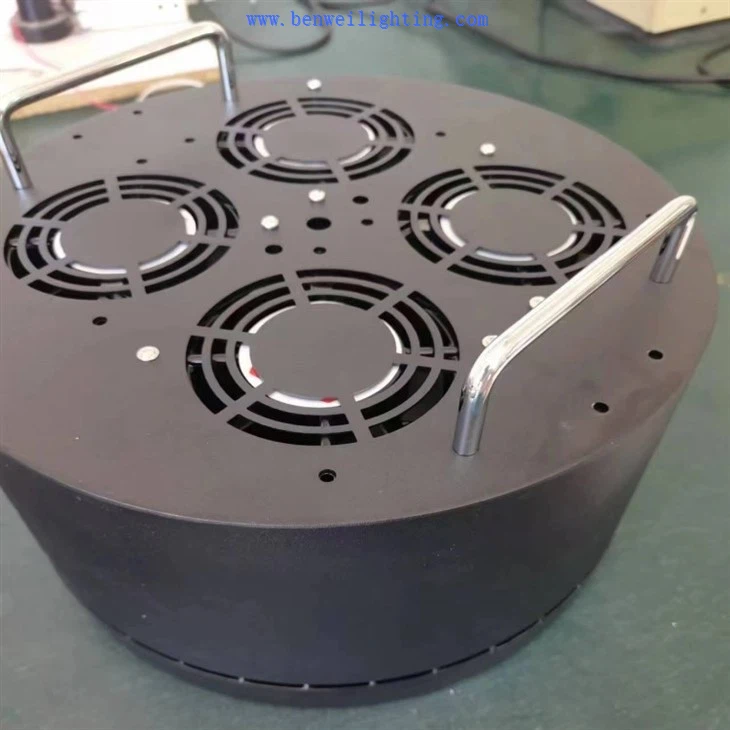

| heat dissipation | 4 fans |
| Wire plug | EU/AU/US 1.5meter plug wire |
| Photometric Data | |
| Led cihp brand | LG/Epistar/Epileds |
| chip type | SMD3535 with copper substrate |
| SMD2835 aluminum substrate | |
| Ee(mW/cm²) | 200W 365nm 230mW/cm² |
| 600W 365nm 420mW/cm² | |
| 800W 365nm 590mW/cm² | |
| Wave length | 395nm/365nm/375nm |
| Life time | 10000Hrs |
product key technologies
1. Instant on/off and dimming, millisecond response, outstanding PWM control, precise reaction control, energy savings
2. Lifetime: 10,000-30,000+ hours; long operating life.
3. Output Power: mW to several W per LED; arrays/strips for increased power; scalable from lab to pilot.
The 310nm LED lamp operates in the ultraviolet (UV) range of the electromagnetic spectrum, especially the UV-B band. This wavelength is very important for photochemical reactions since many catalytic molecules and photoactive substrates absorb light in this range, allowing for efficient excitation and activation. Traditional UV light sources, such as mercury lamps, have been widely used; however, they have many drawbacks, including high energy consumption, large size, heat output, and a short lifespan.
Usage
1. Disinfection and sterilisation.
Inactivation of bacteria, viruses, and biofilms (UVB causes DNA/RNA damage and photocatalytic enhancement).
Air/water/surface treatment is often paired with photocatalysts.
2. Specialised Applications
Phototherapy and biological uses.
Fluorescence/sensing (in some biomolecules).
Evaporative emission control or specialised environmental treatment.
Photoreactors used for parallel wavelength testing.
