Emergency Lighting Regulations and Standards: What You Need to Know

Emergency lighting constitutes a fundamental sub-system of building life safety infrastructure. Its primary function is to ensure adequate illumination during the failure of normal lighting caused by power outages, fire, or other emergency events. By facilitating rapid and safe egress, emergency lighting significantly reduces the risk of panic, accidents, and injuries. It also enables first responders to locate and operate safety equipment (e.g., fire extinguishers, alarm panels, first-aid kits). The absence or malfunction of such systems has been identified as a contributing factor in numerous building evacuation fatalities.

This article provides a systematic overview of mandatory legal requirements, classification of emergency lighting types, standardized testing and maintenance protocols, and prominent international standards. The objective is to equip building owners, facility managers, architects, and safety professionals with actionable knowledge for achieving full regulatory compliance and optimal occupant protection.

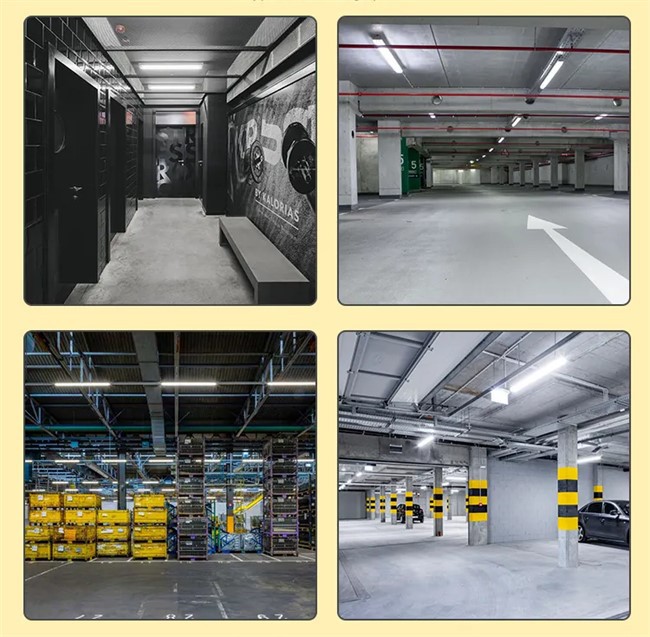

Emergency Led Tube Light 9

In virtually all jurisdictions, emergency lighting is mandated by a combination of national legislation, regional building codes, and municipal fire prevention bylaws. For example:

United States: NFPA 101 (Life Safety Code) and International Building Code (IBC) prescribe installation criteria.

United Kingdom: The Regulatory Reform (Fire Safety) Order 2005, supplemented by BS 5266-1.

European Union: EN 1838 (Lighting applications – Emergency lighting) and national transpositions.

These codes define minimum illumination levels (typically 1 lux on the floor along escape routes), maximum spacing between luminaires, and permissible response times (≤5 seconds after normal lighting failure). Non-compliance can result in legal liability, insurance invalidation, and severe penalties.

Legal requirements apply to:

All new buildings – from design to commissioning, emergency lighting must be integrated into electrical blueprints.

Existing buildings subject to major renovation – change of use, extension, or significant alteration triggers mandatory retrofitting.

Special occupancies – hotels, hospitals, schools, high-rise offices, assembly halls, and industrial facilities with hazardous areas.

It is the legal duty of the building owner/manager to verify region-specific requirements with local authorities or certified fire safety engineers.

Standby lighting enables continuation of normal operations after a power failure. Unlike legally mandated emergency lighting, it is not primarily for life safety but for preventing production losses, data corruption, or security risks. Typical applications include data centers, operating theaters, and control rooms. Standby lighting is often provided by uninterruptible power supplies (UPS) or generator-backed systems, but it must not be confused with emergency escape lighting.

This broad category covers illumination that automatically activates upon loss of normal supply. It includes both escape route lighting and standby functions. Systems rely on central batteries, self-contained battery packs per luminaire, or generators. The critical performance requirement is duration: most regulations demand a minimum of 90 minutes (see Section 4.2) for escape routes, though 30 minutes may suffice for anti-panic areas under certain standards (e.g., EN 1838).

Escape lighting is a subset of emergency lighting explicitly designed to:

Identify and illuminate exit routes (corridors, stairs, doors).

Highlight obstacles (steps, changes in direction, ramps).

Mark fire-fighting equipment and call points.

Reduce confusion during evacuation.

Escape lighting must achieve 50% of its rated output within 5 seconds of power failure. It includes open-area (anti-panic) lighting for large spaces (e.g., auditoriums, warehouses) where occupants are unfamiliar with the layout.

Type	Primary Goal	Typical Duration	Mandatory?
Standby	Continuity of operations	Variable (1–8 hrs)	Only for critical processes
Emergency (General)	Backup for building functions	≥90 min (often)	Yes for egress routes
Escape	Safe evacuation	≥90 min (EN/BS) / ≥30 min (min. test)	Yes – legally required

All emergency lighting systems must undergo periodic functional tests. The most common method is simulated mains failure:

Activate the emergency test switch (or isolate the normal lighting circuit) to force the system onto battery/backup power.

Visually confirm that each luminaire (and exit sign) illuminates within the specified response time (≤5 s).

For self-contained units, check that the battery charging indicator shows normal status after restoration of power.

Frequency requirements (typical, based on BS 5266-1 / IEC 60598-2-22):

Daily/Weekly: Visual inspection of indicator lamps (red/green LEDs).

Monthly: Short-duration (30 seconds) functional test – avoid deep discharge.

Annually: Full-rated duration test (e.g., 90 or 180 minutes) to verify battery capacity.

While a 30-minute test is common for monthly checks, the actual operational duration required by law is generally longer:

Escape routes – Minimum 60 minutes (UK BS 5266), 90 minutes (IEC / many US codes), or 3 hours for high-risk areas (e.g., chemical plants).

Open-area anti-panic – Minimum 60 minutes (EN 1838) or 90 minutes (NFPA 101).

Duration test pass/fail criterion: Entire system must sustain floor illuminance at ≥10% of initial rated lux after 90 minutes (or as specified).

A formal logbook must be maintained (e.g., fire safety register). Key maintenance actions:

Batteries: Replace sealed-lead-acid (SLA) or NiCd batteries at manufacturer-recommended intervals (usually 3–5 years). Failed batteries are the #1 cause of test failure.

Luminaires: Clean diffusers and LEDs; replace deteriorated exit sign legends.

Charging circuits: Test voltage and current to prevent overcharging (shortens battery life) or undercharging (insufficient runtime).

Defective components: Immediate replacement – any luminaire failing a monthly test must be repaired or replaced within 24 hours (under most enforcement regimes).

The International Electrotechnical Commission's standard IEC 60598-2-22 (Luminaires – Part 2-22: Particular requirements for luminaires for emergency lighting) is the most widely adopted global benchmark. It specifies:

Construction: Ingress protection (IP rating), thermal management, and marking.

Performance: Lumen maintenance, battery type approval, and duration testing (e.g., 90-minute test at 40 °C ambient).

Control systems: Requirements for remote monitoring, manual test switches, and automatic periodic test functions (as found in self-test DALI systems).

Harmonized versions include EN 60598-2-22 (Europe), AS/NZS 60598.2.22 (Australia/New Zealand), and UL 924 (North America, though UL 924 diverges in some clauses).

For ships, offshore platforms, and marine vessels, general building standards are insufficient. The IEC 61924 series (Integrated Navigation Systems – previously included underwater acoustic emergency systems) has been superseded by more specific standards. However, the critical maritime emergency lighting standard is IEC 60598-2-22 with additional requirements from the International Convention for the Safety of Life at Sea (SOLAS) and IMO Resolution A.752(18). Key differences:

Vibration, humidity, and salt-spray resistance.

Redundant battery banks for essential evacuation routes.

Compatibility with low-location lighting systems (photoluminescent strips).

Standard	Scope	Key Feature
NFPA 101 (Life Safety Code)	USA	Requires emergency lighting for all means of egress; mandates 1-hour duration at average 1 lux.
EN 1838 (European)	EU	Defines three categories: escape route, open area, high-risk task area lighting.
AS 2293 (Australia)	Australia/NZ	Specifies automatic self-testing and central battery systems.
BS 5266-1 (UK)	United Kingdom	Detailed code of practice for design, installation, and testing.

Compliance with one standard does not automatically satisfy another; projects with international scopes must reconcile multiple frameworks.

Emergency lighting is not an optional design feature but a legally enforceable life-safety system. Compliance requires:

Identifying applicable legal requirements at national, state/provincial, and local levels.

Selecting appropriate system types (standby, general emergency, escape) based on occupancy classification.

Conducting periodic tests – daily indicator checks, monthly short-duration tests, annual full-duration tests – with rigorous documentation.

Adhering to international standards (e.g., IEC 60598-2-22, NFPA 101, EN 1838) as benchmarks for design and performance.

Even experienced facility managers should engage specialist emergency lighting engineers or fire safety consultants for:

Photometric design (lux-level simulation using software like Dialux or Relux).

Battery sizing and load calculations.

Integration with fire alarm and building management systems (BMS).

Third-party certification and commissioning reports.

Failure to comply not only endangers occupants but also invites civil lawsuits, criminal prosecution, and increased insurance premiums. Emergency lighting is a silent sentinel – when a crisis strikes, its flawless operation is often the difference between orderly evacuation and preventable tragedy.
