The integrated all-in-one solar street light with LiFePO4 energy storage battery is methodically explained in this blog, with an emphasis on product positioning, key technical characteristics, application benefits, standardised installation operation, and several project application scenarios. The content analyses the core competitiveness of LiFePO4-type integrated solar street lamps by combining industrial standard luminous parameter data, photovoltaic power generation principles, and battery cycle performance. It focuses on the real pain points of rural road reconstruction, municipal auxiliary engineering, off-grid infrastructure construction, and large-scale farm outdoor lighting projects worldwide. It serves as a reference for international engineering contractors, bulk purchasers, property developers, and individual end-users to choose high-performance outdoor solar lighting products.
Product Brief Introduction
Definition of All-in-one LiFePO4 Solar Street Light
Integrated LiFePO4 solar street light is a highly integrated outdoor lighting fixture that encapsulates monocrystalline silicon photovoltaic panel, high-efficiency SMD LED light source, intelligent MCU control module, PIR human induction sensor and built-in lithium iron phosphate battery inside die-cast aluminum lamp housing. Different from split-type traditional solar street lights with separated solar panel, battery box and lamp body, this integrated structural design cancels external wiring, embedded wiring slots and independent buried battery container, realizing streamlined modular production and on-site rapid installation.
Core Product Positioning
Target application groups cover international municipal engineering contractors, rural road upgrading project investors, industrial park developers, farm operators and villa community property managers. The product is oriented to medium and large-scale outdoor fixed lighting projects without stable municipal power grid access, filling the market gap of low maintenance cost, zero post-operation electricity consumption and all-weather adaptable outdoor road lighting equipment.
Basic Rated Parameter Overview
Serial specifications cover multi-power modules with corresponding lumen output ranging from 6000LM to 25000LM, configured with matched-capacity LiFePO4 batteries and graded high-conversion monocrystalline silicon panels, complying with IEC62471 photobiological safety standard and IP65 international waterproof and dustproof grade, which meets mainstream certification requirements for cross-border export and global engineering tender procurement standards.
Core Reasons for Being Preferred in Rural Road and Engineering Lighting Projects
Adaptability to Rural Infrastructure Construction Pain Points
Most rural scattered villages and remote country lanes lack complete low-voltage power distribution network. Conventional AC-powered street lighting needs trench excavation, cable purchase, transformer erection and regular circuit maintenance, which occupies over 60% of the total project investment. LiFePO4 integrated solar street light relies entirely on photovoltaic self-power generation without grid access, saving construction cost of power distribution auxiliary facilities from source.
Rural branch roads, farm connecting roads and village inner lanes feature irregular distribution and dispersed layout. Integrated solar street lamp realizes single-point independent power supply without series-parallel circuit connection, flexible to arrange installation spacing according to actual road width and pedestrian flow, avoiding layout restriction brought by fixed power supply nodes.
Outstanding Comprehensive Cost Advantage for Medium-to-Large Engineering Projects
After one-time installation completion, the whole lighting system absorbs solar radiation for power storage and lighting operation, no monthly grid electricity fee generation, effectively cutting long-term operating budget for government rural renovation projects and commercial park engineering projects.
LiFePO4 battery and SMD LED light source both own ultra-long service life, the whole lamp reduces component replacement frequency significantly compared with lead-acid battery split solar lamps and traditional sodium lamps, lowering post-project after-sales maintenance labor and accessory replacement expenditure for engineering purchasers.
Strong Environmental Adaptability for Complex Outdoor Engineering Environment
Rural and field engineering sites face drastic temperature fluctuation, rainy weather, dust erosion and humid coastal climate. Die-cast aluminum shell plus fully sealed IP65 structural design effectively isolates rainwater, sand and moisture; wide-temperature LiFePO4 battery works stably under ambient temperature ranging from -30℃ to +60℃, avoiding sudden lighting failure caused by extreme high or low temperature in field engineering environment.
Core Technologies of LiFePO4 Battery Integrated Solar Street Light
LiFePO4 Energy Storage Battery Core Technology
The built-in lithium iron phosphate cathode material adopts high-purity nano-level lithium iron phosphate powder synthesis technology, realizing more than 3000 times deep charge and discharge cycles under standard 0.2C charging and discharging rate, far exceeding 300–500 cycle life of conventional ternary lithium battery and 300–800 cycles of lead-acid storage battery. Low self-discharge rate is controlled below 3% per month, ensuring battery capacity reservation during continuous overcast days.
Independent built-in BMS battery management chip monitors real-time single cell voltage, charging current and internal temperature of battery pack, activating overcharge protection, over-discharge protection, short-circuit protection and over-temperature protection automatically. BMS matches MCU master control system to adjust daytime charging current according to sunlight intensity, preventing irreversible damage to battery caused by overcharging under strong sunlight.
High-efficiency LED Light Source & Secondary Optical Distribution Technology

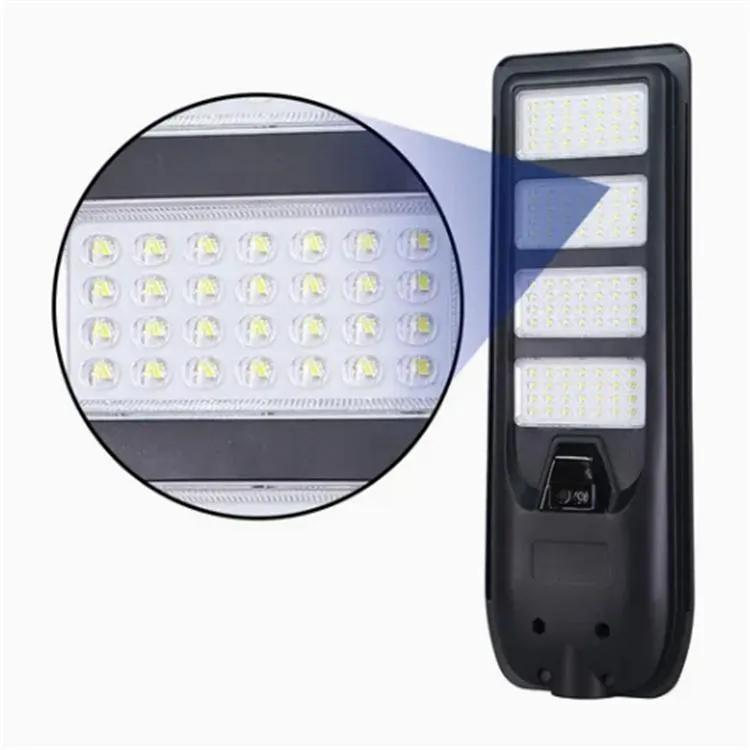

The lamp source adopts copper substrate packaged high-power SMD2835 LED chips with low thermal resistance structure, effectively deriving heat generated during continuous lighting to restrain luminous decay; the product's overall luminous efficacy reaches 180LM/W, CRI＞75, fixed color temperature at 6500K neutral cool white, conforming to international road lighting color rendering specification. After 5000 hours of continuous aging test, lumen attenuation is controlled within 3% of initial brightness.
Customized high-transmittance PMMA optical lens carries out secondary light distribution for LED outgoing beam, setting fixed 120° wide flood lighting angle, eliminating central over-glare and pavement dark area problems of unassisted bare lamp bead lighting, improving effective pavement illumination area and road night driving safety coefficient.
Photovoltaic Power Generation & Intelligent Control System Technology
Front panel uses tempered glass covered monocrystalline silicon solar cell with photoelectric conversion efficiency up to 22%, superior to conventional polycrystalline silicon panel with 16%–18% conversion rate. Under AM1.5 standard test condition, 6–8 hours of effective daytime sunlight can fully replenish rated battery capacity; surface silica gel full sealing process prevents panel from aging and power efficiency reduction caused by rainwater infiltration.
Integrated photosensitive dusk-dawn sensor, PIR human body infrared motion sensor and programmable remote control chip form triple intelligent control logic. Photosensitive component automatically identifies ambient illuminance value to trigger dusk-on and dawn-off switch; PIR sensor switches lamp from low-power standby brightness to full rated brightness once human or vehicle movement is captured; remote controller supports 3H/6H/8H fixed timing setup to meet customized engineering lighting demands.
Multidimensional Benefits Brought by LiFePO4 Solar Street Light for Buyers and End Users
Economic Benefit Analysis
Canceling power cable procurement, foundation excavation and power grid access construction greatly shortens project construction period and reduces auxiliary material investment, helping engineering bidders control total project cost to obtain higher profit margin in tender competition.
Zero daily electricity cost plus ultra-low maintenance frequency cuts annual fixed expenditure for property management departments and rural administrative units; large bulk purchasers gain more unit price discount through container wholesale procurement to further optimize comprehensive input-output ratio.
Practical Usage Benefit for End Users
Sufficient LiFePO4 battery reserved capacity supports normal lighting for 3–5 consecutive rainy or cloudy days without sunlight supplement, solving the common lighting interruption defect of low-capacity lead-acid solar street lights in rainy seasons. Reserved Type-C emergency charging port realizes artificial supplementary charging under long-term overcast weather to ensure uninterrupted night illumination.
Low-brightness standby under no pedestrian condition and instant full-bright induction mode reduces ineffective power consumption, extending single full-charge continuous working time while ensuring road safety lighting requirement.
Environmental and Certification Benefit
Whole working process consumes clean solar energy without fossil fuel power consumption and carbon emission; LiFePO4 battery belongs to environment-friendly recyclable power storage component without heavy metal pollution of waste lead-acid batteries, complying with global carbon neutral development policy and green engineering tender access standard.
Product matches CE, RoHS, IEC related international certification standards, smooth for customs clearance and market access of Europe, Southeast Asia, Africa and South America, removing qualification barrier for cross-border bulk export business of global distributors.
Standard Operation Specification and Classified Application Scenarios
Standard Correct Installation & Usage Specification
Choose installation pole with height matching lamp power specification, confirm installation position avoids tall trees, high buildings and permanent shadow shielding to guarantee effective sunlight irradiation on solar panel throughout daytime; clean panel surface regularly every quarter to remove dust, fallen leaves and bird droppings which block sunlight absorption.
After fixing lamp body on light pole, turn on built-in master power switch, use matched remote controller to finish lighting mode setting including timing duration and induction sensitivity; complete 2–3 days of full sunlight charging before formal full-load night operation to prolong integral battery service life.
Avoid artificial disassembly of sealed lamp shell and built-in battery module at will; prohibit external high-voltage power supply access to damage BMS protection system and LED driving circuit.
Detailed Classified Application Scenarios
Countryside main trunk roads, inter-village connecting lanes, village community inner pedestrian paths, farmland access roads and rural public square perimeter lighting, the core application field for government rural road upgrading renovation project.
Industrial factory perimeter access, logistics warehouse parking lot, large-scale farm breeding zone passage, shopping mall outdoor pedestrian area and campus inner branch road fixed outdoor lighting.
Villa courtyard driveway, gated community garden footpath, private ranch surrounding road and homestead outdoor yard safety lighting for individual property owners.
Island resident area road, mountain remote no-grid villages, temporary construction site, outdoor camping base and ecological protection zone remote access lighting where municipal power grid is unavailable.
Final Purchasing Suggestion
For global engineering contractors, bulk distributors and individual buyers focusing on long-term stable lighting investment, LiFePO4 integrated solar street light is a cost-effective alternative to conventional grid-connected street lamps and low-end lead-acid solar lamps. With mature industrialized core technology, reliable all-climate adaptability and obvious comprehensive cost advantage, this series of products has become mainstream designated lighting equipment for global rural reconstruction and outdoor engineering projects; standardized bulk purchase supports customized power parameter configuration according to different project road width and illuminance requirement to maximize project input-output benefit.
