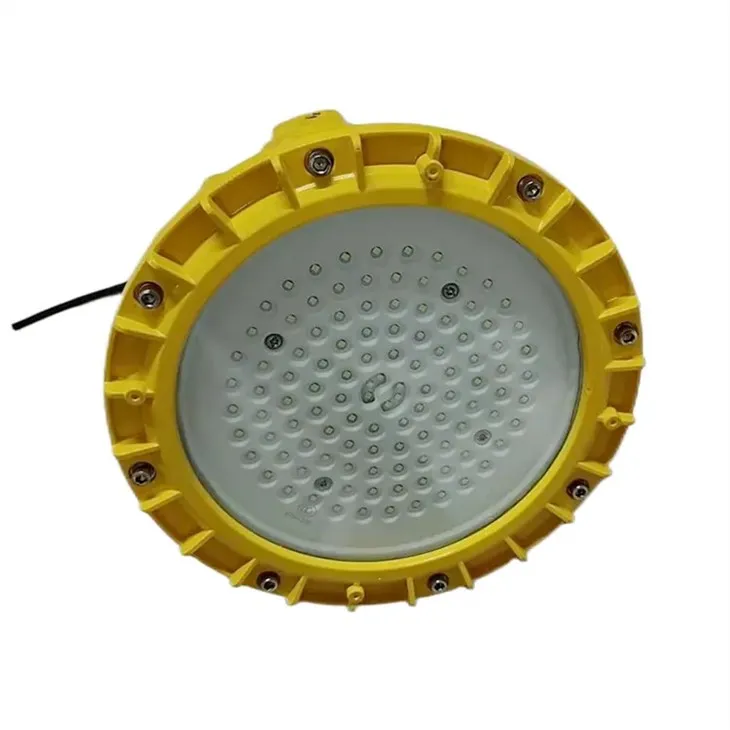

Products Description
The true meaning of "explosion-proof" does not mean that the lamp itself can withstand an internal explosion. Instead, it refers to the fact that it employs special measures to be able to:
Isolate internal electrical sparks/heat: Ensure that the electric sparks, arcs or hot surfaces that may occur inside the lamp do not come into contact with the external explosive mixtures.
Preventing internal explosion: Even if an explosion occurs accidentally inside the lamp, the special structure (such as the explosion-proof surface) can contain the flame and explosion pressure within the casing, preventing the ignition of the external environment.
Core objective: To prevent the lamps from becoming a source of ignition for an explosion.
Products Features
* Tempered Glass. Compressive And Explosion-proof. Anti-aging all-aluminum Die Casting;
* Power: 30W/40W/50W/60W/80W/100W/120W/150W;
* Optics: 90°/100º available on request;
Products Specification
|
Product name |
LED explosion proof light |
|
Power |
30W 40W 50W 60W 70W 80W 100W 120W 150W 200W |
|
Beam Angle |
60°,90°,120° |
|
IP Rating |
IP66 |
|
PF |
≥0.97 |
|
CRI (Ra>) |
80 |
|
Lamp Luminous Efficiency(lm/w) |
140 |
|
Working Temperature(℃) |
-45℃~80℃ |
|
Material |
Aluminium alloy explosion-proof cover |
|
LED chip |
LUMILEDS |
|
Warranty |
5years |
|
Input Voltage(V) |
AC85-265V |
|
Color Temperature |
2700-6500K |
|
Frequency Range |
50-60HZ |
Products Details
The IP level is the level of protection against foreign objects from the enclosures of electrical equipment.
IP65
"6" means that the dust-proof level is 6, which completely prevents dust from entering.
"5" means that the waterproof rating is 5, that is, low pressure injection at any angle has no effect.
Products Applications
* Used in Oil and Gas, Chemical, Railway, Elec-tric power, Metallurgy, Petroleum, Petrochemical, Chemical, Workshop, Warehouse, Steel, Aviation, Ship and Various types of Factories, Stations, Large Facilities, Venues and otherAnti-Explosive Zones with ATEX certification
Explosion-proof lamps are widely used in any industrial site where there is a potential explosive environment:
Oil, chemicals and natural gas: Drilling platforms, refineries, chemical plants, pumping stations, gas stations.
Mining: Underground coal mines (requires MA certification for coal safety).
Grain and food processing: Flour mills, sugar factories, starch plants, all have combustible dust.
Military industry and aerospace: Fuel filling area, painting workshop.
Wastewater treatment, pharmaceutical production, etc.
