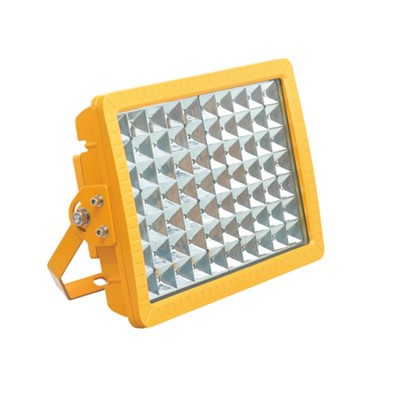

Products Description
LED technology brings new benefits to explosion-proof applications:
LEDs are safer because they're solid-state. This lamp does not emit an arc like metal halide lamps, hence it is less prone to explode.
Super long lifespan: LEDs last 50,000–100,000 hours, reducing replacement and maintenance. Hazardous regions have high maintenance costs and risks, making this crucial.
High efficiency and energy savings: The light output is substantially higher than explosion-proof metal halide and high-pressure sodium lamps, and the energy savings rate is frequently over 50%.
Instant startup: Lights up immediately after powering up, unlike traditional light sources.
Excellent optics: No flicker, high color rendering index (CRI > 70) for more pleasant and realistic illumination helps workers detect colors and details.
Strong and durable: The solid-state LED resists shock and impact.
Environmental protection: Mercury-free.
Products Features
2.Heat dissipation: Large space size to enable the installation of different large-scale electrical equipment; explosion-proof electrical box and light holder with double cavity design. Outstanding heat dissipation capabilities, which significantly extend the lamp's service life by allowing the power supply and LED chip temperatures to grow within an acceptable range.
Products Specification
|
Power |
150W, 200W, 250W |
|
Frequency |
50/60Hz |
|
Rated Voltage |
AC110~240V |
|
Light Qty |
180pcs |
|
Light efficiency |
120 lumen /w |
|
Operating Temperature |
-30~50℃ |
|
Power factor |
>0.95PF |
|
IP Rating(IP): |
IP66 |
|
Anti-corrosion grade |
WF2 |
|
Ex mark |
Ex db IIC T6 |
|

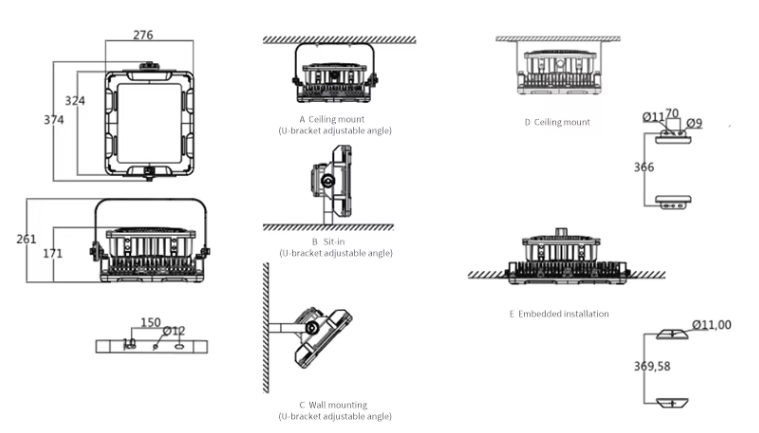

DL260 Size |
37.4*27.6*17.1cm |
|
DL260L Size |
42.5*31.5*16.5cm |
|
DL260 weight |
8.9KG |
|
DL260L weight |
12.5KG |
Products Details
Products Applications
Oil and gas: Drilling platforms, refineries, oil pumping stations, gas stations.
Chemical and Pharmaceutical: Chemical plants, reaction vessel areas, solvent extraction workshops, pharmaceutical production workshops.
Mining: Coal mine tunnels (requiring special MA certification for coal safety), mineral processing plants.
Grain and food processing: Flour mills, sugar factories, starch plants, edible oil refining plants (with flammable dust).
Aerospace and military industry: Fuel filling area, painting workshop.
Wastewater treatment and biogas power generation: around the biogas tank, processing workshop.
