Products Description
1.The unit features a 4mm thick tempered glass front cover, attaining an IP67 classification for dust and water resistance, rendering it impervious to rain, dust, dew, and various outdoor conditions.
2.The whole shell employs a die-cast aluminium heat sink, which provides an extensive heat dissipation surface and rapid heat conduction, ensuring enhanced safety relative to conventional aluminium fin heat sinks.
3.The driver power supply is equipped with a standalone protective enclosure, and the connecting cables are subjected to dual-layer protection to mitigate the possibility of short circuits due to moisture and debris.

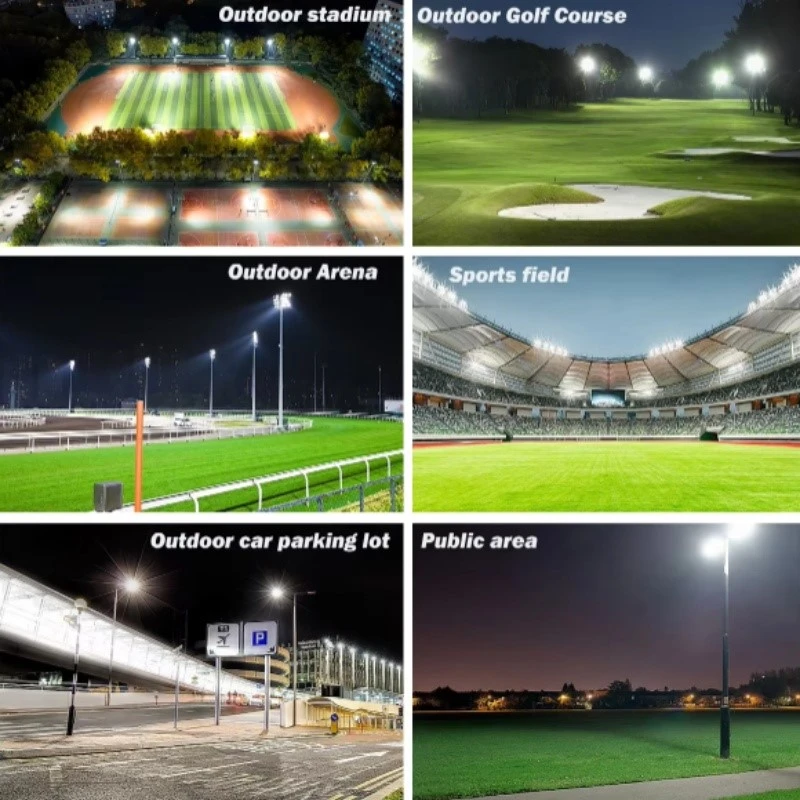

4. Primarily utilised for extensive outdoor illumination, appropriate for locations such as sports fields, football pitches, golf courses, open-air parking facilities, expansive plazas, outdoor arenas, and public spaces in parks, rendering it an essential lighting fixture for engineering projects and sports venue refurbishments.
| Products Name | IP67 Outdoor High Efficiency Led Sport Flood Light | Input Voltage(V) | AC90-305V, 50/60Hz, 249-528V AC for option |
| Color Temperature(CCT) | 2700-6500K | Lamp Luminous Efficiency(lm/w) | 150-160lm/w,165-180lm/w |
| Application | Sport Field Flood Stadium Lights | Control Method | Switch |
| Lifespan (Hours) | 30000 | Warranty(Year) | 3-Year |
| IP Rating | IP67,IK09 | Color Rendering Index(Ra) | 80 |
| Support Dimmer | no | Installation | Wall Mount, Embedded, Recessed, Surface Mounted |
| Material | Die casting aluminum ADC12,PC lens+glass | Lighting solutions service |
Lighting And Circuitry Design |
| Light Source | LED, Epistar Cob | Product Weight(kg) | 8.5 |
| Switch Mode | Manual Button | Feature | Anti-Glare, High Brightness, Eco-Friendly, Durable, Easy Installation,flicker free |
| Certification | CE, Emc, LVD, RoHS, Saa, CB, ENEC, SAA, RCM | Working Temperature(℃) | -15 - 45 |
| Design Style | modern | Power Factor | >0.90 |
| Power | 300W (30watt to 1000watt optional) | LED Type | 3030 or 2835 SMD |
| Color | White |
Lamp Luminous Flux(lm) |
45000lm~54000lm |
| Beam Angle(°) | 20°,30°, 45°, 60°, 90°,120°,60x120°, 90x120°, and 80*150° | Surge protection | L/N-PE:10KV,L-N:6KV;20KV version is for option. |
More Detial

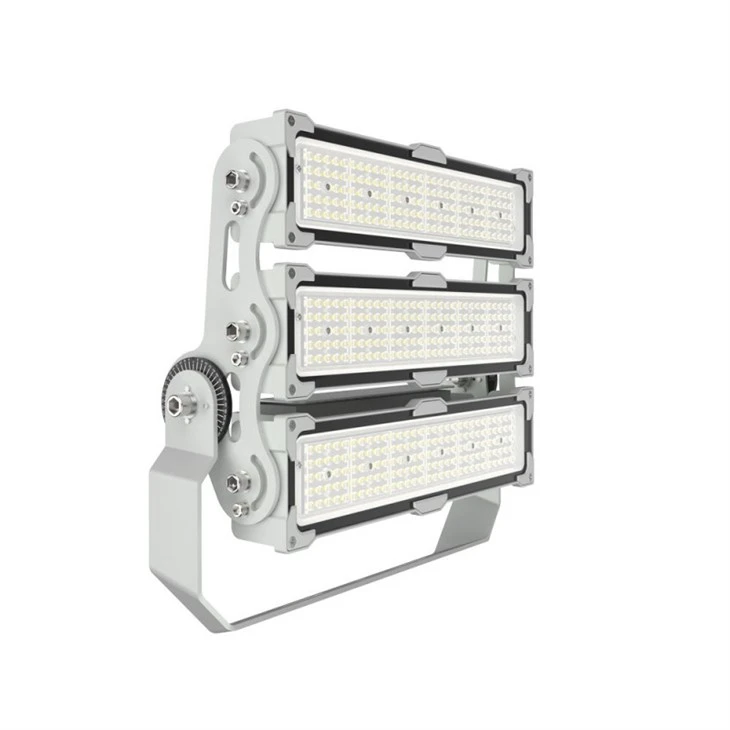

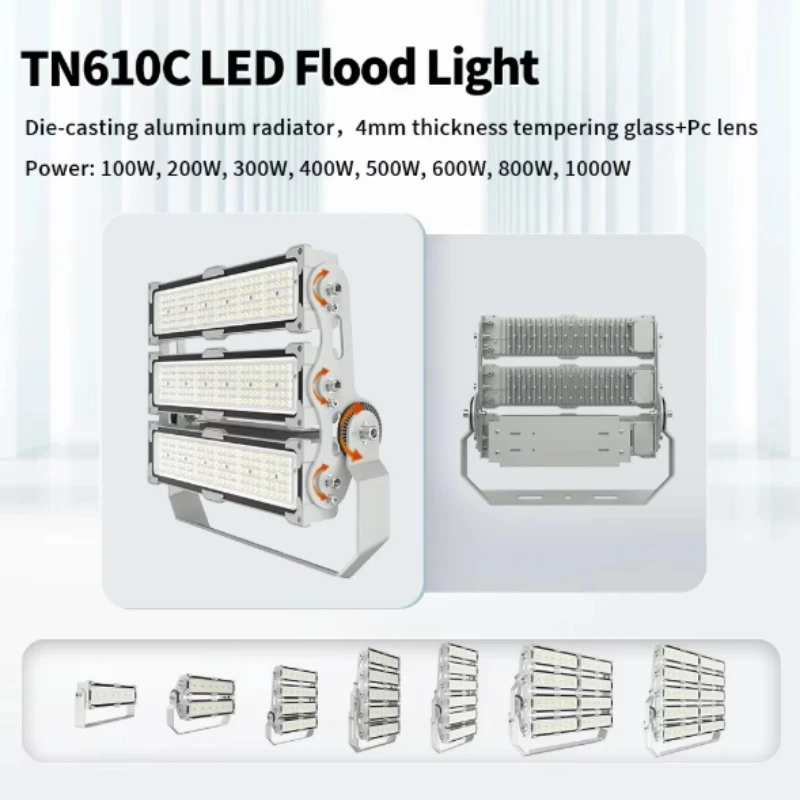

This modular LED floodlight has a versatile, modular design with multi-angle adjustability, high-efficiency LEDs, and an IP67 exterior protection rating. It harmonises energy efficiency with durability, provides various power levels to accommodate venues of differing sizes, and incorporates several heat dissipation and circuit protection mechanisms to guarantee prolonged stable operation. It is particularly engineered for expansive outdoor lighting applications, including stadiums, parking lots, and huge plazas, rendering it a cost-efficient high-power outdoor lighting option.
