Products Description
The core advantages of LED sports lights
High efficiency and energy saving: The luminous efficiency is high, reaching over 130-160 lm/W. At the same brightness level, the power consumption is significantly reduced.
Longevity: The service life exceeds 50,000 hours, which is 5 to 10 times longer than that of traditional lamps.
High color rendering: The color rendering index (Ra) is usually above 70, and can even reach 80+ or higher, making the venue colors more realistic and providing a more comfortable visual experience for athletes.
Instant startup: Lights up immediately upon power-on, without delay. Supports intelligent control (such as circuit division dimming).
Environmental protection: Free of harmful substances such as mercury and lead.
Precise light distribution: Through the design of professional lenses, the light can be precisely controlled within the stadium area, reducing glare (light pollution).
Products Specification
|
Input Voltage |
100-265VAC 50/60Hz |
|
Beam Angle |
60,90&60*150Degree |
|
Working Temperature |
-40---50C |
|
Lumen Output/CRI |
110-130lm/W CRI80+ |
|
Total lumen |
52000lm |
|
CCT |
Warm White: 3000-3300K, Neutral white: 4000-4500K, Cool White: 6000-6500K |
|
Fixture Adjust |
140 Degree |
|
IP Rank |
IP 65 |
|
Life-span |
50000-80000 hours |
|
waterproof |
Waterproof or Non Waterproof avaliable |
|
Materials |
Aluminum And PG |
|
Quality Guaranty |
5 years |

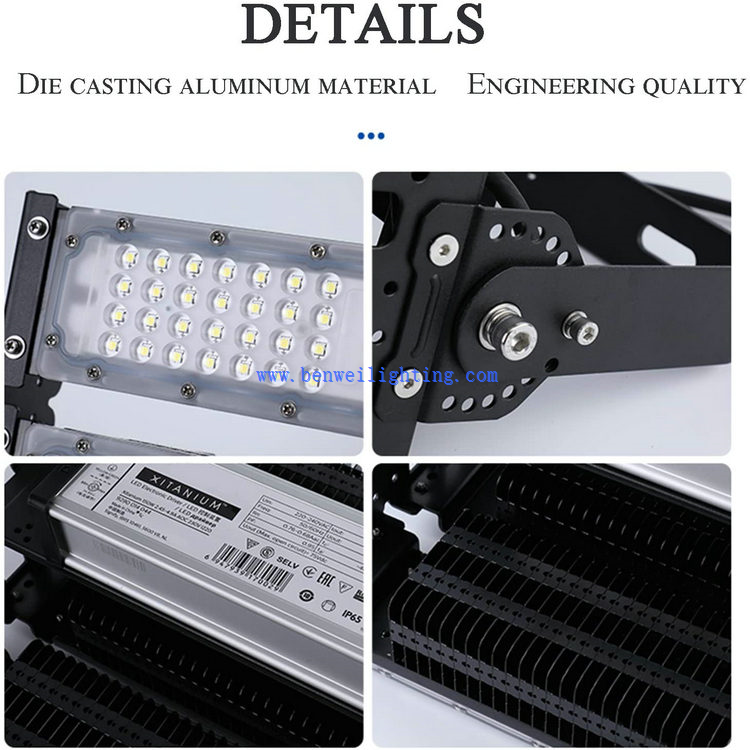

Products Details
Selecting and installing?
Calculating illumination and uniformity:
Illumination standards vary by competition level (training, amateur, professional, TV).
Professional lighting design software like Dialux is needed to calculate how many lights are needed, how high the lamp poles should be, and how to position them for optimal illumination and uniformity.
Minimum/average lighting uniformity is crucial. Glare and tiredness might result from poor homogeneity.
Method of installation:
Pole-top installation: Installation of a clamp or support at the pole top is the most usual method.
Installing roof eaves: Ideal for roofed stadium courts.
Track installation: Common in large indoor stadiums.
Height and spacing of installation:
Lamp poles are normally 12–20 meters tall.
Taller lamp poles may require fewer lamps, but each lamp would need more power and more perfect light distribution.
Products Applications
1000W (or equivalent) LED stadium lights are suitable for medium to large outdoor sports venues:
Football fields (11-a-side and 7-a-side)
Basketball courts
Tennis courts
Baseball/softball fields
Golf course driving ranges
Large plazas and parking lot lighting
