Products Description

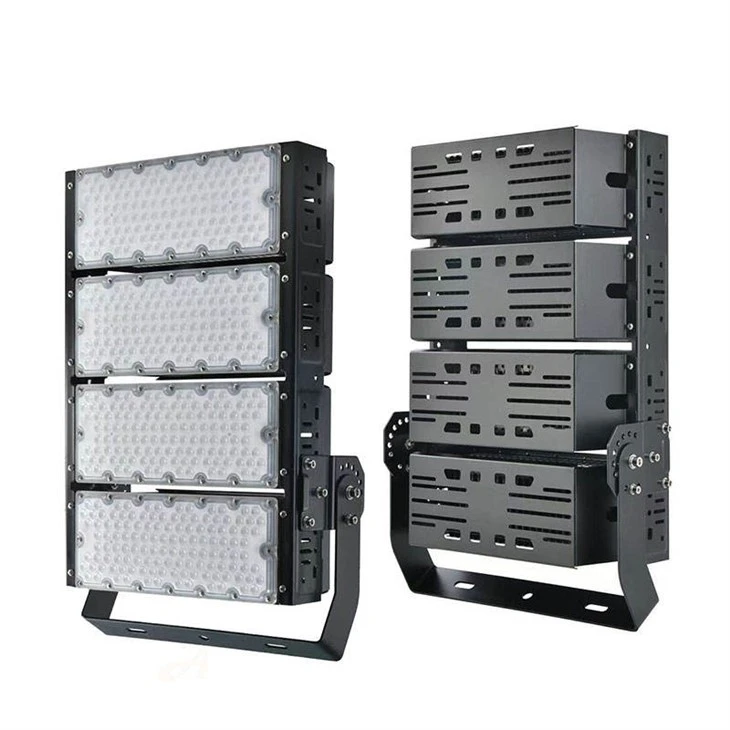

1. The fixture features a one-piece die-cast aluminum alloy housing with large, open heat-dissipation channels on the back; this design creates an airflow path that rapidly dissipates heat from the modules. The rust-resistant, durable finish ensures longevity, while stable thermal management during high-power, long-duration operation helps delay LED degradation.
2. It is equipped with a thickened, rust-resistant U-shaped bracket and locking screws, allowing the light body to tilt 0–180 degrees for precise beam adjustment. The base features multiple pre-drilled mounting holes, ensuring secure installation on high-mast poles, walls, columns, or ground platforms.
3. Featuring PMMA optical lenses, the fixture offers a beam angle range of 60° to 210°, enabling both narrow-angle long-range projection and wide-angle area illumination. This ensures uniform, glare-free lighting across the entire site with no dark spots.
4. Suitable applications: Sports venues such as basketball courts, football fields, racetracks, and rugby fields; as well as construction site tower crane lighting, ports and terminals, logistics and warehousing parks, large open-air parking lots, and outdoor plaza lighting.
| Products Name | SMD IP66 Aluminum Led Stadium Flood Lights | Input Voltage(V) | 85~305V AC |
| Color Temperature(CCT) | 2700K (Soft Warm White), 4100K (Neutral White), 6000K (Daylight Alert), 5000K (Daylight), 3500K (Warm White) | Lamp Luminous Efficiency(lm/w) | 130 |
| Application | Sports Stadiums,tennis court,Cricket Field | Lamp Luminous Flux(lm) | 19200--230400 |
| Lifespan (Hours) | 30000 | Warranty(Year) | 3-Year |
| IP Rating | IP66 | Color Rendering Index(Ra) | 80 |
| Support Dimmer | NO | Material |
Aluminum |
| Beam angle | 144 | Lighting solutions service |
Lighting And Circuitry Design |
| Light Source | LED | Product Weight(kg) | 7.2 |
| Installation Style | Wall Mount, Embedded, Recessed, Surface Mounted | Feature | Anti-Glare, High Brightness, Eco-Friendly, Durable, Easy Installation,flicker free |
| Certification |
CE, C-Tick, Emc, ETL, FCC, Gs, LVD, RoHS, Saa |
Working Temperature(℃) | -40 - 55 |
| Design Style | Modern | Power Factor | >0.90 |
| Power | 100w/120w/150w/200w/300w/400w/500w/600w/800w/1000w/1200w | LED Type | Cob |
| Control Method | Remote Control, Touch, Voice, App Control, Light Sensor | Item Type | Outdoor Led Projector Floodlight |
More Detial
This modular high-mast floodlight is an industrial lighting fixture designed for large, open areas. Its modular, scalable structure allows for flexible power configurations, enabling brightness levels to be tailored to sites of any size. High-efficacy, low-lumen-depreciation LED chips paired with premium constant-voltage drivers ensure both energy efficiency and long-term operational stability. Featuring an open-structure aluminum heat sink and IP66-rated full protection, it is perfectly suited for harsh outdoor environments exposed to sun and rain; additionally, adjustable mounting brackets and a variety of optical lens options enhance installation versatility and light distribution. Whether for stadium lighting upgrades, industrial lighting at construction sites and docks, or outdoor illumination projects for large complexes, it meets the demands for long-range, wide-area, and all-weather high-intensity lighting-offering durability and reliability, making it an ideal choice for large-scale project procurement.
