Easy to Install, Easier to Adjust: A Guide to the 500W LED U-Bracket System

Illuminating a sports stadium or a large industrial port is a formidable engineering challenge. For decades, facility managers were forced to rely on cumbersome metal halide fixtures that required complex mounting hardware, multiple personnel for installation, and rigid, non-adjustable brackets that locked the light into a single, often imperfect, trajectory. The advent of premium LED technology, such as our 500W LED Stadium Light, has completely revolutionized this landscape. However, a brilliant light engine is only as effective as its delivery system. If the fixture is difficult to install or impossible to finely adjust, its optical potential is wasted.

The core philosophy behind the 500W LED Stadium Light is the seamless integration of cutting-edge illumination with intuitive, contractor-friendly installation. The centerpiece of this philosophy is the state-of-the-art U-Bracket System. This is not merely a piece of bent metal; it is a precision-engineered mounting apparatus designed to drastically reduce labor costs, eliminate installation downtime, and provide unparalleled directional flexibility. The following sections will explore how this system, combined with the fixture's immense 150LM/W output, IP65 waterproof rating, and 10KV surge protection, delivers an unmatched return on investment.

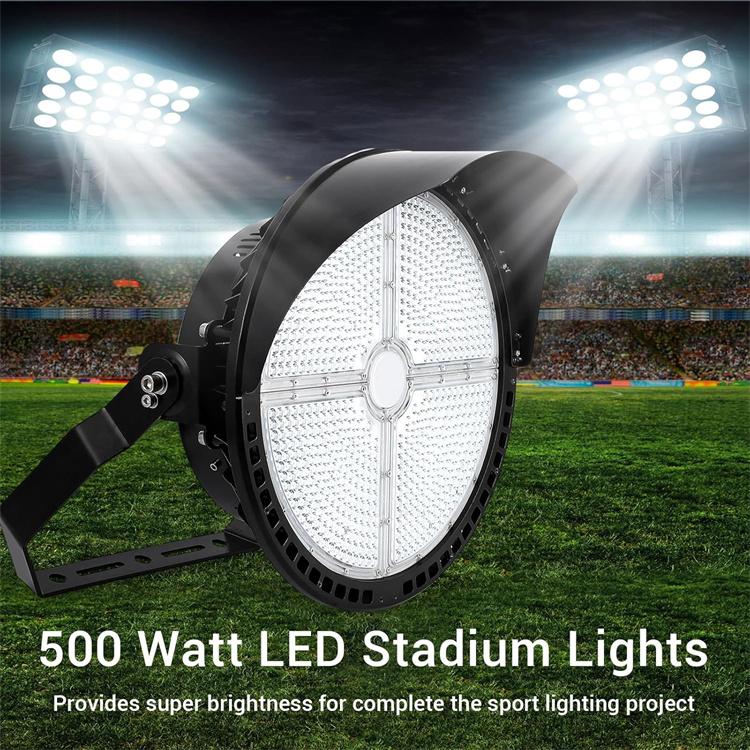

led sport court lights

When evaluating the installation process for a 500W high-bay or stadium light, the structural integrity of the mounting bracket is paramount. The U-Bracket System engineered for this fixture is forged from heavy-duty, high-tensile aluminum, seamlessly matching the robust, thickened aluminum housing of the main unit. This is a deliberate design choice; a 500W fixture possesses significant physical weight and requires a mounting system capable of withstanding severe aerodynamic loads, vibration, and environmental stress.

The "U" shape is not arbitrary. It is designed to cradle the circular body of the stadium light, distributing the weight evenly across the chassis and preventing torsion or metal fatigue over decades of operation. The bracket features a widened base plate, which is critical for multi-install applications. Whether being mounted onto a round high-mast pole, a square concrete wall, or a truss structure, the widened footprint of the U-bracket ensures an incredibly secure, anti-slip connection. The thickening of the steel also serves a dual purpose: it prevents flexing during strong wind events-which could otherwise cause beam misalignment and flickering-and provides a high-friction surface to ensure the aiming angle remains locked in place indefinitely.

The hallmark of a professionally engineered commercial LED light is its capacity to be installed efficiently. The U-Bracket system streamlines this process. The bracket is equipped with elongated, pre-drilled mounting slots rather than standard circular holes. This intentional design allows for micro-adjustments in positioning during the installation phase. Contractors do not need to perfectly align every bolt hole on the first attempt; the slots provide the necessary tolerance to shift the fixture slightly left, right, up, or down before final tightening. This drastically reduces the installation time from hours to minutes.

Furthermore, the wiring process is simplified to the highest degree. The fixture is equipped with a clearly labeled wiring harness designed for universal compatibility. The Live Wire is marked Pink, the Neutral Wire is Blue, and the Earth Wire is Green Yellow. This color-coding, combined with the wide AC100-277V input range, means the 500W LED Stadium Light can be seamlessly integrated into nearly any existing electrical infrastructure without the need for complex step-down transformers or costly rewiring. The wiring diagram provided ensures that even junior technicians can wire the fixture safely and correctly on the first attempt, completely mitigating the risk of electrical errors.

The title of this paper asserts that the light is "Easier to Adjust," and this is where the U-Bracket system truly shines. In a stadium setting, the difference between standard illumination and pristine, shadow-free visibility often comes down to just a few degrees of tilt. Traditional fixtures require technicians to unbolt the entire bracket from the pole to change the angle, a highly inefficient and sometimes dangerous task at high elevations.

This 500W LED Stadium Light completely eliminates that pain point. The U-Bracket connects to the main light housing via a heavy-duty pivot joint, secured by a high-tension locking bolt. To change the angle, a technician simply needs to loosen this single, easily accessible screw. The light can then be freely rotated up to 240 degrees. This incredible range of motion allows for everything from a direct 60-degree downlight over a baseball diamond, to an angled projection across a football field, to an uplight for architectural facade lighting. Once the desired angle is achieved, the screw is tightened, and the high-tension washers ensure the light will not droop over time due to gravity or wind.

The synergy between the 240-degree adjustable U-bracket and the 60-degree beam angle is a masterclass in optical control. The 60-degree beam angle provides an intense, focused cone of light (ideal for long-throw applications like sports fields), while the 240-degree bracket allows that cone to be placed exactly where it is needed. This ensures maximum luminaire utilization and eliminates wasted light spillage.

The U-Bracket system also functions as an integral part of the fixture's thermal management. Heavy-duty aluminum acts as a massive heat sink, drawing thermal energy away from the critical LED junction points and dissipating it into the ambient air. This is critical for maintaining the fixture's rated lifespan and minimizing lumen depreciation over time. Unlike standard steel brackets that rust and degrade, the aluminum construction ensures a maintenance-free lifespan, even in coastal or highly humid environments.

Furthermore, the physical security provided by the U-bracket complements the fixture's extreme environmental resilience. The entire unit boasts an IP65 waterproof rating, meaning it is completely sealed against dust ingress and protected against low-pressure water jets from any direction. Whether it is enduring a torrential downpour, heavy snow, or extreme heat, the robust U-bracket and sealed housing work in tandem to protect the internal electronics. Additionally, with 10KV surge protection built into the driver, the fixture is shielded against lightning strikes and grid voltage spikes-a common occurrence in outdoor stadium environments. The widened, thickened U-bracket guarantees that even in extreme weather, the light remains anchored, stable, and fully operational.

From a commercial standpoint, the U-Bracket System is a massive value-add. The initial purchase price of a stadium light is only a fraction of its total cost of ownership. The true expenses lie in labor for installation, equipment rental (like cherry pickers or cranes), and ongoing maintenance.

By designing a mounting system that can be installed quickly by fewer people, and adjusted effortlessly without specialized tools, this 500W LED Stadium Light drastically reduces upfront labor costs. Furthermore, its high luminous efficacy of 150LM/W means it requires fewer fixtures to achieve the desired foot-candle levels compared to lower-efficiency alternatives, directly reducing the number of U-brackets needed and the complexity of the overall installation.

When you factor in the long lifespan (driven by advanced heat sinking and low lumen depreciation) alongside the zero-maintenance nature of the IP65, 10KV surge-protected housing, the ROI becomes exceptional. Facility managers can expect over 50,000 hours of operation with virtually zero upkeep, freeing up budget that was previously allocated to bulb replacements and bucket truck rentals.

led arena lights

In conclusion, the 500W LED Stadium Light is a testament to the power of intelligent, user-centric design. The Widened, Thickened, and Adjustable U-Bracket System is far more than a mounting accessory; it is an essential component that guarantees structural integrity, simplifies complex installations, and offers unparalleled optical aiming flexibility.

Whether you are upgrading a local high school football field, retrofitting a massive industrial port, or designing the lighting for a professional baseball diamond, this fixture delivers unmatched performance. With its blistering 150LM/W output, daylight-bright 5700K color temperature, robust 240-degree rotation, and comprehensive IP65 and 10KV protection, it stands ready to dominate the night. Invest in a lighting solution that respects your time, your budget, and your field of play. Choose the 500W LED Stadium Light with the advanced U-Bracket System-where superior engineering meets effortless illumination.
