How to Achieve Perfect Lighting Angles with a 180° Rotatable Bracket

Lighting a large-scale industrial facility, a sports stadium, a shipping port, or a commercial warehouse is a complex engineering endeavor. It is rarely a simple matter of installing a fixture and turning it on. In fact, improper lighting angles are one of the leading causes of excessive energy consumption, severe light pollution, and compromised safety in outdoor environments. When light is misdirected, it spills into the night sky, trespasses onto neighboring properties, or creates dangerous glare for pedestrians and vehicle operators. Conversely, an area that is under-lit due to poor angling becomes a liability risk.

Historically, lighting fixtures were burdened with rigid, fixed mounting brackets, forcing designers to compromise between illuminating the immediate ground and targeting distant structures. The introduction of the 180° rotatable bracket, paired with an advanced modular LED design, has fundamentally revolutionized this dynamic. This innovation empowers professionals to dictate exactly where the photon stream travels. This paper aims to elaborate on how to harness this technology, utilizing the featured heavy-duty modular LED flood light-with its premium die-cast aluminum housing, toughened glass shade, and high-precision power driver-to achieve absolute illumination perfection.

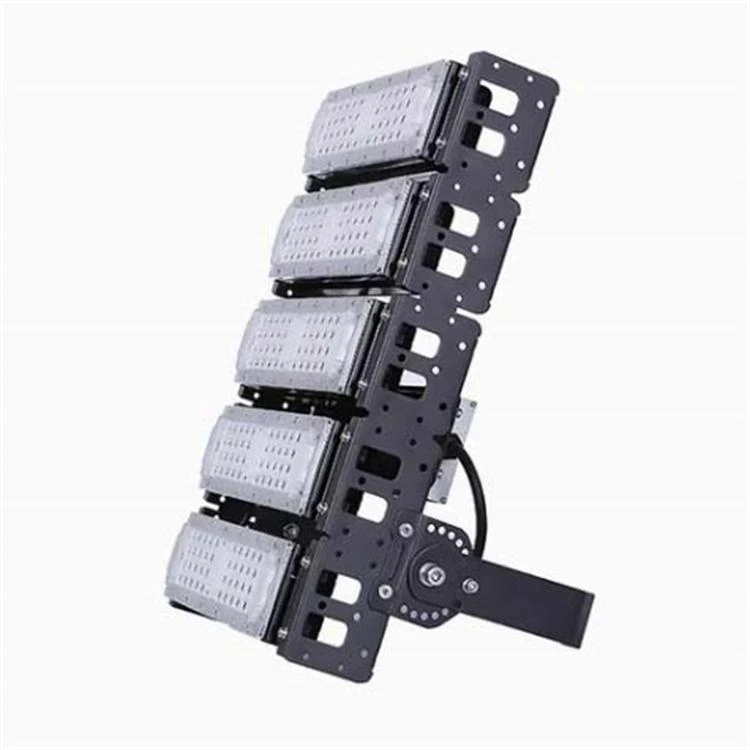

outdoor arena lights

To understand the value of a 180° rotatable bracket, one must first understand the physics of light distribution as it pertains to large-scale outdoor areas. Light emitted from high-power LEDs does not disperse uniformly like a traditional incandescent bulb; it is highly directional. When designing a lighting layout, the "photometric curve" dictates how the light spreads. If a fixture is permanently angled at a default 45 degrees, the majority of its lumens are directed to a specific spot, leaving peripheral areas in shadows.

For instance, in a high-mast port application, massive container ships need illumination at varying depths. If the light is angled too steeply downward, the sides of the containers are cast in deep shadow, making crane operations hazardous. If angled too horizontally, the light creates blinding glare for the crane operators in their cabins. The ability to finely tune the angle allows for precise control over this distribution. By rotating the fixture exactly to the point of need, engineers can achieve uniform illuminance across a target area, eliminating dark spots and reducing the need for excessive, redundant fixtures. This precision directly translates to a dramatic reduction in capital expenditure (CAPEX) and operational expenditure (OPEX), as fewer fixtures are required to achieve optimal lighting coverage.

The mechanical core of this advanced lighting solution lies in its robust mounting bracket. As observed in the product design, the bracket is not a simple hinge. It is an engineered gear-lock system integrated into a heavy-duty, die-cast aluminum frame. This mechanism allows the operator to rotate the light fixture up to 180 degrees, providing an unparalleled range of motion.

The integration of a "gear-lock" is a critical detail. In outdoor and industrial environments, vibration is a constant threat. Winds exceeding 100 km/h, the rumble of heavy machinery, and the general elements of nature can easily loosen standard friction-based brackets. A loose bracket means the light slowly drifts away from its intended target, rendering the initial lighting design useless over time. The gear-lock mechanism, however, firmly meshes internal teeth, physically locking the fixture into the exact angle chosen by the installer. It provides precise, incremental adjustments, ensuring that the fixture remains exactly where it is placed for years, regardless of environmental stresses.

Furthermore, the physical design of the bracket, featuring elongated mounting slots and a heavy-duty black matte finish, speaks to its versatility. The elongated slots allow for further fine-tuning during installation, enabling the fixture to be shifted laterally or diagonally before final tightening. The black matte coating is not merely aesthetic; it provides an additional layer of corrosion resistance against salt spray in coastal areas, chemical fumes in industrial zones, and harsh UV radiation, ensuring the structural integrity of the mounting mechanism matches the longevity of the light source itself.

Achieving the perfect lighting angle is only half the battle; the quality of the light emitted at that angle is what ultimately delivers the desired effect. This is where the optical components of the flood light synergize perfectly with the mechanical adjustability. The fixture utilizes imported LED chips, which effectively improve brightness by approximately 30% compared to standard alternatives. However, raw brightness without control is a liability. When paired with the 180° gear-lock bracket, this increased brightness can be precisely weaponized to illuminate targets from exceptionally long distances.

Crucially, the optical system is protected by a toughened glass lamp shade. Unlike polycarbonate (PC) lenses, which can yellow and cloud over time under intense UV exposure, the high-quality tempered glass mask maintains high light transmission and clarity throughout its lifespan. It boasts a high explosion-proof coefficient and high hardness, meaning it can withstand the impact of debris, hail, or accidental strikes without shattering into dangerous shards. When the bracket is angled to direct light over a wide area, the clarity of this glass ensures that the 30% brightness boost is delivered accurately, without diffusion losses.

Moreover, the precision of the angle directly influences glare control. By allowing the fixture to be angled slightly away from direct lines of sight, or by precisely aiming it to utilize the natural cut-off of the light distribution, the 180° bracket aids in creating a comfortable visual environment. This is further stabilized by the certified power driver, which ensures constant high-precision current. Without a stable driver, even the perfectly angled light would flicker or suffer from color shift. The high power conversion factor of the driver guarantees that the imported LEDs receive stable, reliable power, ensuring the beam maintains its integrity and color temperature regardless of the angle chosen.

A common oversight in lighting design is the relationship between the physical angle of the fixture and its ability to dissipate heat. LEDs are semiconductor devices; their lifespan and lumen output are directly tied to their operating temperature. A poorly designed fixture, when tilted to an extreme angle, might inhibit airflow across its heatsink, leading to thermal throttling and premature failure.

The modular LED flood light in question elegantly sidesteps this issue through its advanced structural design. The lamp body is constructed using a 1070 pure aluminum stamping process. Aluminum 1070 is renowned in thermal engineering for its exceptional thermal conductivity and lightweight properties. The die-cast body features densely packed, exposed heat sink fins. Because of the 180° rotatable bracket, operators can position the fixture to maximize passive airflow. Even in challenging vertical or steeply angled installations, the modular design allows air to pass through the fins efficiently.

This superior heat dissipation effectively extends the lifespan of the LEDs, pushing them well beyond the standard 50,000-hour mark while minimizing lumen depreciation (light loss) over time. The modular nature of the fixture-available in configurations like 1x2, 2x2, or 1x4 arrays-means that when the bracket is adjusted, the entire array moves harmoniously. The structural rigidity provided by the heavy-duty brackets on each module ensures that the fixture does not warp or flex under its own weight or wind load, maintaining the integrity of the seals and the thermal pathways.

The ultimate test of any outdoor lighting fixture is its ability to survive the elements. Achieving a perfect lighting angle often requires placing the fixture in exposed locations, such as the top of a pole or the edge of a canopy. The product features a high ingress protection rating (IP66), making it completely dust-tight and protected against powerful water jets from any direction.

The design of the 180° bracket complements this IP66 rating. The gear-lock mechanism is sealed to prevent water ingress, and the mounting hardware is resistant to corrosion. When angled downwards, the toughened glass face naturally sheds water and debris, preventing the buildup of dirt that can degrade light output. When angled sideways or upwards, the robust sealing of the glass to the die-cast aluminum frame prevents moisture from entering the LED chamber. Furthermore, the impact resistance (IK rating) of the tempered glass and die-cast housing ensures that the fixture remains operational even in high-vandalism areas or regions prone to severe weather events like hailstorms. This resilience guarantees that the perfect angle you set on day one will remain perfectly functional for years to come.

The practical applications of a 180° rotatable bracket are vast and varied, each offering a distinct return on investment.

In sports stadiums, precise angling is paramount. The 180° bracket allows lighting designers to aim fixtures to create uniform light across the playing surface without blinding the players or spectators. The ability to tilt the light to specific angles eliminates shadows cast by players, which is crucial for high-speed sports and broadcasting quality.

In warehouse and logistics centers, where high-bay lighting is essential, the bracket allows the light to be aimed precisely down aisles or directly at shelving racks. This targeted approach eliminates wasted light bouncing off the ceiling, directly reducing energy costs. The modular nature means that if a warehouse layout changes, the lights can simply be unbolted, re-angled, and repositioned, rather than replaced entirely.

For architectural facade lighting, the 180° bracket enables designers to wash walls with light evenly from top to bottom, or to create dramatic grazing effects that highlight texture and depth. Because the fixture is available in varying modular configurations, it can be scaled up or down to match the size of the structure, ensuring that the lighting design is as dynamic and flexible as the architecture itself.

Achieving perfect lighting angles is not a matter of guesswork; it is a precise engineering discipline that requires the right tools. The integration of a 180° rotatable bracket with gear-lock technology into a high-performance, modular LED flood light represents the pinnacle of this discipline. By combining the mechanical precision of the bracket with the optical brilliance of imported LED chips, the thermal efficiency of a 1070 pure aluminum body, and the rugged durability of an IP66 and toughened glass construction, this lighting solution transcends conventional boundaries.

It is not merely a fixture that turns on; it is a dynamic instrument that can be tuned to the exact specifications of any environment. Investing in lighting with this level of adjustability is an investment in efficiency, safety, and longevity. It guarantees that every watt of power is converted into useful, targeted illumination, delivering uncompromising brilliance exactly where it is needed most. Upgrade your lighting infrastructure today, and take absolute control over your environment with the unparalleled flexibility of a 180° rotatable modular LED flood light.
