IP65 Waterproof LED Tube Buying Tips: Driver, Chip, Sealing Structure You Need To Check

In the lighting industry, the IP65 rating is a unified international ingress protection standard formulated by IEC 60529, representing full dust tightness and anti-low-pressure water jet impact capability. However, many inferior products on the market falsely label IP65 through simple surface sealing, without passing professional dust and water resistance tests. Their waterproof and dustproof performance will completely fail after temperature cycling and long-term humid environment operation. Meanwhile, parameters such as nominal power and lumen value can be optimized through virtual labeling and instantaneous peak brightness adjustment, which cannot reflect the stable performance of long-term operation. Only the three core hardware configurations of driver, chip and sealing structure are the essential indicators to distinguish high-quality products from inferior products, and are the core basis for judging the long-term reliability of IP65 waterproof LED tubes in harsh working conditions.

Ordinary civilian waterproof LED tubes are only suitable for mild humid environments such as ordinary bathrooms and balconies, with low requirements for driver stability, chip heat resistance and sealing durability. In contrast, industrial and commercial IP65 waterproof LED tubes need to cope with extreme working conditions such as low temperature freezing, high humidity condensation, frequent water flushing, unstable grid voltage and long-term 24/7 continuous operation. This puts forward higher professional requirements for core configurations: the driver needs to have wide voltage adaptation and surge protection, the chip needs to have low light decay and temperature resistance, and the sealing structure needs to resist aging and structural deformation. Purchasers must abandon civilian product selection standards and strictly screen industrial-grade core configurations to ensure the long-term stable operation of lighting equipment.

grow lights for seedlings

The LED driver is equivalent to the heart of the waterproof tube, responsible for converting alternating current into stable direct current for the LED chip, and undertaking voltage regulation, current limiting, anti-surge and fault protection functions. Industry data shows that more than 80% of waterproof LED tube failures in harsh environments are caused by driver damage, rather than LED chip damage. High-quality drivers can ensure stable operation for more than 50,000 hours, while inferior drivers may burn out in dozens of days. Therefore, driver screening is the top priority in the purchasing process.

Isolated driver adopts electromagnetic isolation design, which completely separates the high-voltage input terminal and low-voltage output terminal through transformer structure, with zero electrical connection between the two circuits. When the grid has surge impact, short circuit or leakage occurs, the isolation structure can effectively block high voltage, avoid chip breakdown and electric leakage risks, and protect the safety of equipment and personnel. Non-isolated drivers omit the isolation transformer and adopt direct-connected circuit design, which has the advantages of low cost and small size, but has fatal defects in safety and stability. In case of grid voltage fluctuation or water vapor-induced slight short circuit, high voltage will directly break through the LED chip, causing instantaneous burnout of the lamp tube.

For IP65 waterproof LED tubes used in wet, dusty, low-temperature and 24-hour continuous working scenarios such as cold storage, car washes and food processing workshops, isolated constant-current drivers are mandatory configurations. Non-isolated drivers are only suitable for dry indoor low-demand lighting scenarios and are completely not applicable to harsh industrial and commercial environments. When purchasing, purchasers can confirm the driver type through product parameter sheets and professional test reports, and refuse non-isolated cost-down products.

Most inferior waterproof LED tubes adopt narrow voltage design (220-240V AC), which can only adapt to stable municipal voltage. However, industrial sites, cold storage equipment and outdoor lighting circuits often have voltage sags, surges and unbalanced three-phase voltage caused by the start and stop of high-power equipment such as compressors and water pumps. The professional-grade IP65 waterproof LED tube is equipped with an 85-277V universal wide-voltage driver, which covers the voltage standards of most countries and regions in the world, and can tolerate voltage fluctuations within the range without flicker, overcurrent and burnout. It perfectly adapts to unstable grid environments and meets the needs of global project deployment.

Many businesses falsely label wide voltage parameters. The true wide-voltage driver can maintain constant current output and stable luminous flux in the full voltage range of 85-277V, with no obvious brightness change. Inferior products will have severe flicker, brightness attenuation or automatic shutdown when the voltage is lower than 180V or higher than 250V. Purchasers can conduct on-site voltage fluctuation tests or require suppliers to provide professional electrical performance test reports to verify the authenticity of wide voltage parameters.

The internal driver of the waterproof tube is in a closed humid space for a long time, so the waterproof and moisture-proof performance of the driver itself is crucial. High-quality industrial-grade drivers adopt full high-viscosity waterproof potting glue encapsulation technology, which completely covers all electronic components of the driver, isolates external water vapor, condensed water and humid air, and prevents component oxidation, damp short circuit and corrosion. Inferior products only use simple glue dispensing or no glue filling, and water vapor will penetrate into the driver interior after long-term use, resulting in component failure.

Professional drivers are built-in anti-surge resistors and short-circuit protection modules, which can resist instantaneous voltage spikes caused by lightning induction and equipment switching. When local short circuit occurs, the driver will automatically cut off the power supply to avoid large-area circuit failure and lamp burnout. This protection mechanism greatly reduces the maintenance risk of lighting projects and improves the overall operational safety of the system.

The LED chip determines the luminous efficiency, light decay speed, color rendering performance and service life of the lamp tube. Many buyers blindly pursue high brightness and ignore the chip quality, resulting in rapid dimming of the lamp tube after one year of use, which cannot meet long-term lighting needs. High-quality IP65 waterproof LED tubes are equipped with high-performance SMD2835 professional lighting chips, which have significant advantages over inferior chips in terms of luminous efficiency, heat resistance and light decay control.

The mainstream industrial-grade waterproof LED tube adopts SMD2835 patch chips, with a luminous efficiency of up to 130-150lm/W. Compared with inferior low-cost chips such as 3014 and 5730, SMD2835 chips have higher light output per watt, more uniform light emission, and lower heat generation. Under the same power, it can provide brighter and more three-dimensional lighting effects, effectively reducing overall energy consumption. For 24/7 continuous operating cold storage and industrial workshops, high luminous efficiency chips can save a lot of electricity costs for users in the whole life cycle.

Inferior products often use low-grade chips with virtual standard lumen parameters. The instantaneous brightness is high, but the light decay is extremely fast, and the brightness will drop by more than 30% within half a year. High-quality SMD2835 chips have strict lumen binning screening, with consistent single-chip brightness and color temperature, no color difference in the whole lamp, and stable light output for a long time. Purchasers should focus oneffective luminous efficiency and long-term light stability, rather than instantaneous peak brightness.

LED chip light decay is mainly caused by excessive junction temperature. High-quality waterproof tubes are matched with optimized thermal structure design. The aluminum substrate and high thermal conductivity structural parts quickly export the heat generated by the chip operation, keep the chip junction temperature in a safe and stable range, and effectively slow down light decay. Inferior chips are matched with low thermal conductivity substrates, resulting in accumulated internal heat, accelerated chip aging, and rapid brightness attenuation.

Qualified SMD2835 industrial chips have a rated service life of up to 50,000 hours, with L70 light maintenance rate (retaining 70% of the initial brightness) after long-term operation. Even in low-temperature and high-humidity harsh environments, they can maintain stable light output for more than 5 years of continuous operation, avoiding frequent lamp replacement. Inferior chips often fail early due to poor temperature resistance, which greatly increases project maintenance costs.

Matched with high-quality constant-current driver, SMD2835 chips realize flicker-free light output, avoiding stroboscopic damage to human eyes caused by low-frequency flicker. For food inspection, manual operation and long-term working environment, flicker-free lighting can effectively reduce eye fatigue and improve work efficiency and operational safety.

High-quality chips have high color rendering index (CRI), which can truly restore the color of objects. It is very suitable for supermarket freezer display, food processing and other scenarios that require high color reduction, improving product display effect and production inspection accuracy.

The IP65 protection level is not only a label, but a comprehensive reflection of structural design, material selection and sealing process. The sealing structure is the outermost barrier for the waterproof tube to resist dust, water splash and condensed water. 90% of waterproof failure problems of LED tubes are caused by defective sealing structures such as loose end caps, inferior sealing gaskets and unqualified wiring joints. Professional purchasers need to focus on three core parts: overall shell structure, end cap sealing process and cable gland waterproof design.

Professional IP65 waterproof LED tubes adopt high-transmittance UV-stabilized PC material shell, which has the characteristics of anti-aging, anti-yellowing, anti-cracking and corrosion resistance. It can resist ultraviolet radiation, temperature cycling and humid corrosion for a long time, and will not become brittle, yellow and deformed after years of use. At the same time, the high-transmittance design ensures high light transmittance, avoiding light loss caused by shell shielding. Inferior products use recycled ordinary plastic shells, which are easy to yellow, crack and age, leading to rapid failure of waterproof performance.

The product is equipped with two optional shell diffusers: frosted milky white cover and transparent clear cover. The frosted cover provides soft glare-free lighting, suitable for commercial display and public lighting scenarios; the transparent cover maximizes luminous flux output, suitable for industrial workshops, storage and other high-brightness demand scenarios. Both structures have integrated sealing design, which does not damage the overall waterproof performance while ensuring lighting performance.

High-quality waterproof tubes adopt full-perimeter high-elastic silicone sealing gaskets at the end caps, with seamless fitting between end caps and tube body, no gap reserved. Different from the partial gasket or single-point glue sealing of inferior products, the full-perimeter sealing structure can effectively block the penetration of dust, water vapor and condensed water, and maintain stable IP65 protection level under long-term temperature change and vibration conditions.

The end cap interior adopts integrated glue filling and fixing technology, which solidifies the connecting parts and sealing structure as a whole, avoiding loosening and water leakage caused by thermal expansion and contraction. This process solves the industry common problem of water ingress and dust accumulation at the end cap gap, and greatly improves the environmental adaptability of the lamp tube.

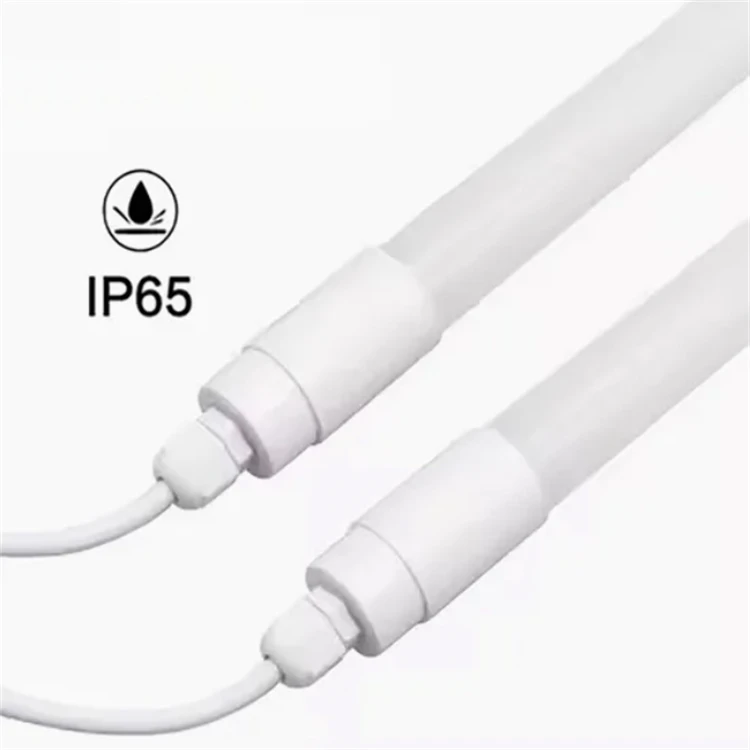

The weakest point of the waterproof tube's protection performance is the power wiring position. High-quality products are equipped with IP65 professional waterproof cable glands and flame-retardant waterproof power cords, which are consistent with the overall protection level of the lamp tube. The threaded locking structure and built-in sealing ring ensure that the wiring position is completely sealed, preventing water splash and water vapor from penetrating into the tube body along the line.

The professional structural design supports single-end power supply and multi-tube daisy-chain series connection. The integrated waterproof wiring structure avoids repeated wiring hole opening, reduces sealing failure points, simplifies on-site installation procedures, and improves the overall sealing and safety of the lighting system. It is very suitable for large-area continuous lighting projects such as cold storage racks and workshop assembly lines.

Do not trust self-declared IP65 parameters of merchants. Purchasers must require suppliers to provide official third-party IP65 dust and water resistance test reports, driver electrical performance test reports and lamp light decay test reports, to confirm that the product meets industrial-grade standards.

Confirm three core configurations one by one before purchasing: isolated wide-voltage driver, genuine SMD2835 high-efficiency chip, full-process IP65 sealing structure. Reject non-isolated drivers, inferior low-light-decay chips and simplified sealing products to avoid low-cost and low-quality traps.

For batch purchased products, simple on-site detection can be carried out: conduct long-term power-on test to observe whether there is flicker and brightness attenuation; conduct water splash simulation test to check whether there is water ingress inside the lamp tube; disassemble the sample to verify driver encapsulation process and chip model, to ensure that the actual configuration is consistent with the publicity parameters.

The purchase of IP65 waterproof LED tubes is not a simple price comparison, but a comprehensive evaluation of core configuration, long-term stability and total cost of ownership. The three core elements of isolated wide-voltage driver, high-quality SMD2835 chip and integrated IP65 sealing structure determine the product's excellent performance in anti-surge, low light decay, dust and water resistance, and long service life. High-quality industrial-grade waterproof LED tubes can reduce lamp failure rate and maintenance labor costs to the greatest extent in harsh environments, save long-term electricity expenses, and bring stable and reliable lighting support for cold chain storage, industrial processing, commercial lighting and other projects. For professional purchasers who pursue high cost performance and long-term operational stability, focusing on the three core buying tips of driver, chip and sealing structure is the only way to select high-quality IP65 waterproof LED tubes and create maximum project value.
